Steering Column Control Module (SCCM): Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

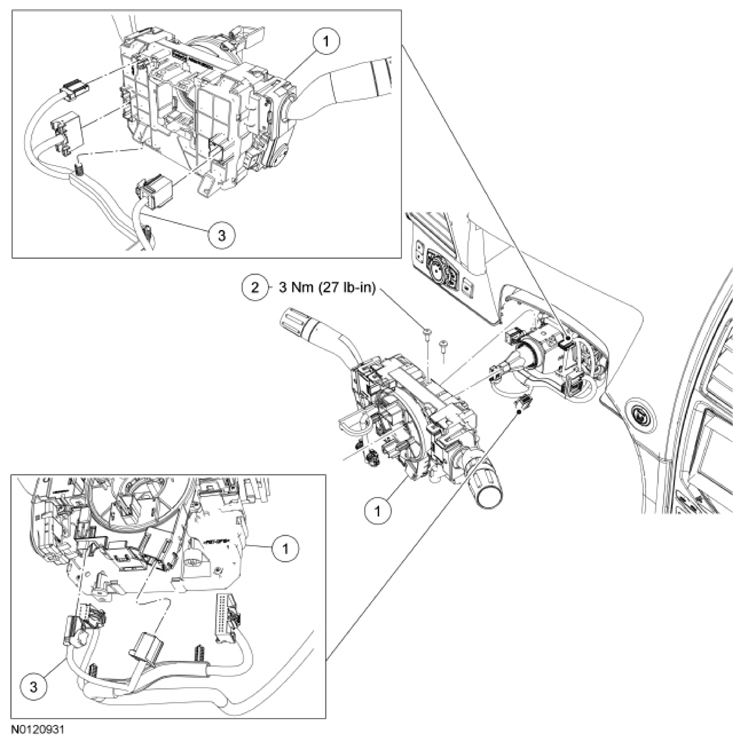

| Item | Part Number | Description |
|---|---|---|
| 1 | 3F791 | Steering Column Control Module (SCCM) |
| 2 | W715057 | SCCM screw (2 required) |
| 3 | 14401 | Wire harness |
