Steering Column Control Switch: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: Steering wheel removed for clarity.

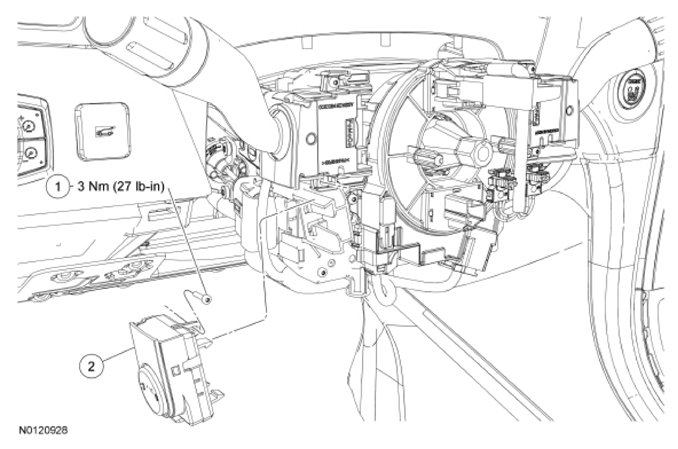

Fig 1: Steering Column Control Switch And Screws With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W715057	Steering column control switch screw
2	3B504	Steering column control switch
