MKX Instrument Panel Fasteners

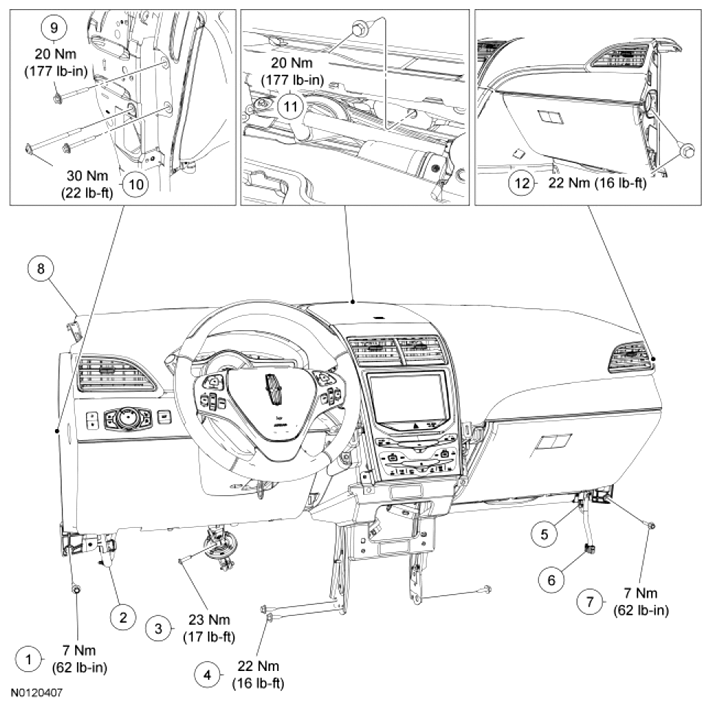

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W703845 | LH instrument panel-to-body bolt |
| 2 | 14401 | LH instrument panel electrical connectors |
| 3 | 3RA27 | Steering column shaft-to-steering column bolt |
| 4 | W706246 | Instrument panel-to-floor bolt (3 required) |
| 5 | - | Antenna lead-in |
| 6 | 14401 | RH instrument panel electrical connector |
| 7 | W703845 | RH instrument panel-to-body bolt |
| 8 | 04320 | Instrument panel |
| 9 | W712386 | LH instrument panel bolt (2 required) |
| 10 | W712387 | LH instrument panel Torx head bolt |
| 11 | W712403 | Instrument panel-to-front of dash bolt |
| 12 | W706246 | RH instrument panel bolt |
- For additional information, refer to the procedures in this service information.
