MKX Instrument Panel

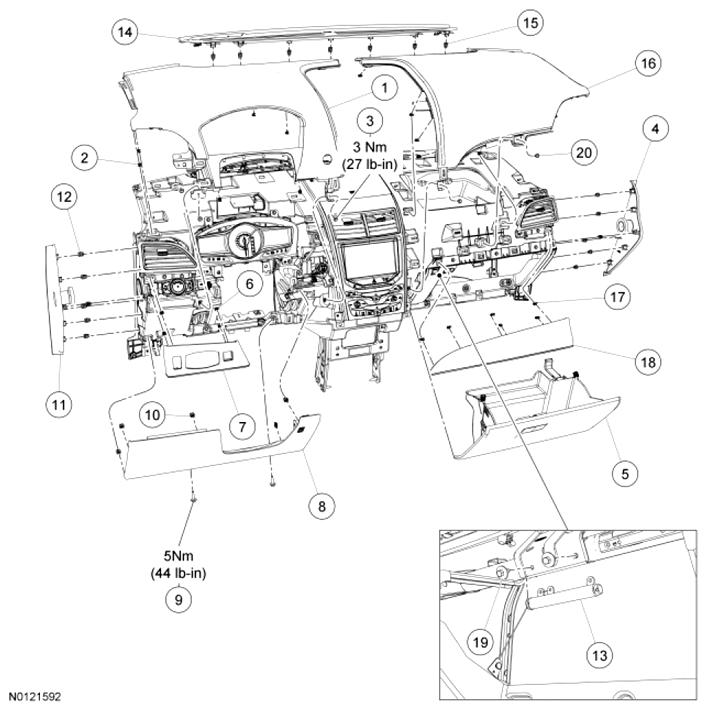

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 78044F58 | LH Instrument Panel Cluster (IPC) top cover |
| 2 | W790178 | Clip (9 required) |
| 3 | W707628 | IPC top cover screws (2 required) |
| 4 | 7804480 | RH instrument panel side trim panel |
| 5 | 7806024 | Glove compartment |
| 6 | W790178 | Clip (4 required) |
| 7 | 78044A91 | Left finish panel |
| 8 | 7804459 | Steering column opening trim panel |
| 9 | W505424 | Steering column opening trim panel screws (2 required) |
| 10 | W790178 | Clip (5 required) |
| 11 | 7804481 | LH instrument panel side trim panel |
| 12 | W790178 | Clip (6 required) |
| 13 | 7806200 | Glove compartment dampener |
| 14 | 78044E82 | Defroster grille |
| 15 | W790178 | Defroster grille clip (7 required) |
| 16 | 78044F58 | RH IPC top cover |
| 17 | W790178 | RH instrument trim panel clip (7 required) |
| 18 | 7804338 | RH instrument trim panel |
| 19 | W710506 | Glove compartment dampener screw (2 required) |
| 20 | W707628 | RH IPC top cover screw (27 required) |
