Fuel Level Sender: Notes

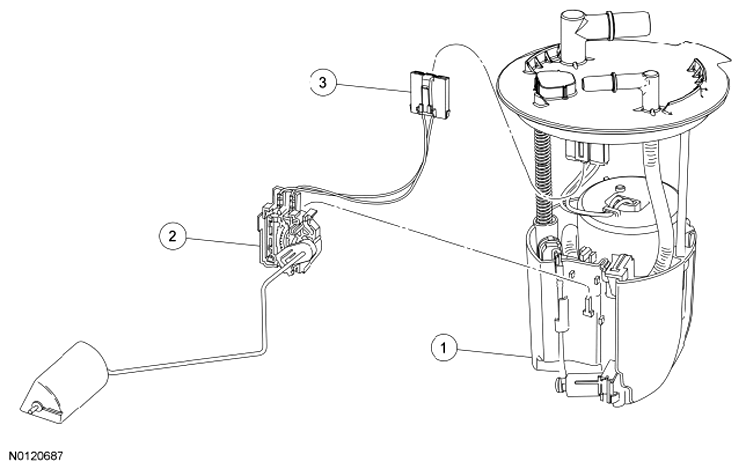

Fig 1: Identifying Fuel Level Sender, Fuel Pump Module And Fuel Level Sender Electrical Connector

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	9H307	Fuel Pump (FP) module
2	9A299	Fuel level sender
3	-	Fuel level sender electrical connector (part of 9A299)
