Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Module configuration is required when a new ACM is being installed.

    Upload the ACM configuration information to the scan tool. Refer to PROGRAMMABLE MODULE INSTALLATION (PMI) .

  2. Remove the FDIM. Refer to FRONT DISPLAY INTERFACE MODULE (FDIM) .

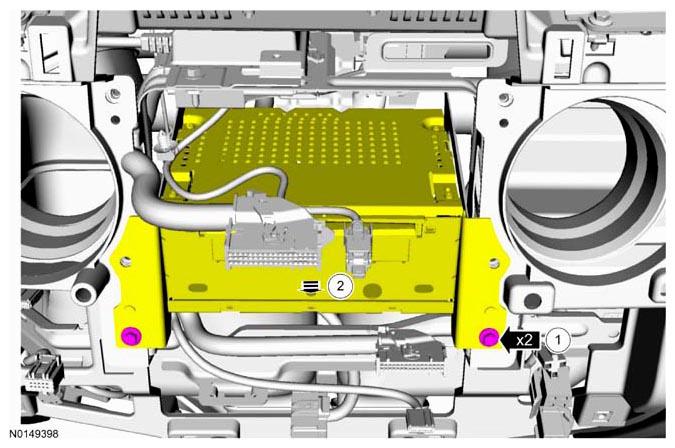

  3. G08595668

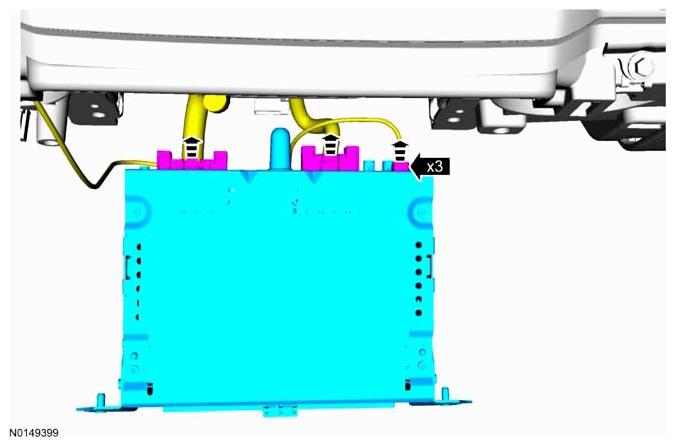

  4. G08595669
  5. To install, reverse the removal procedure.
    • Download the configuration information to the ACM. For additional information, refer to PMI in MODULE CONFIGURATION .
