Front Display Interface Module (FDIM): Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

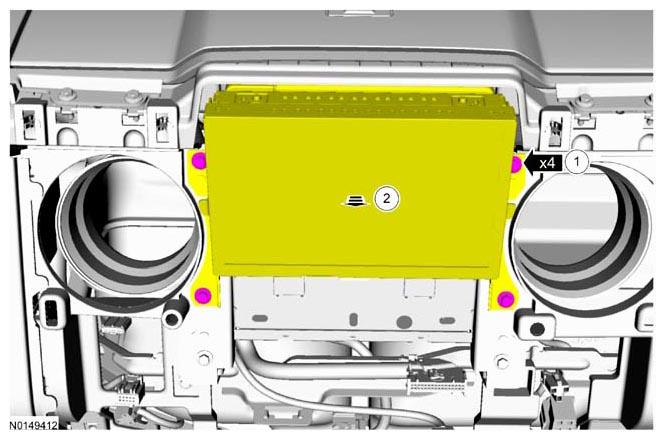

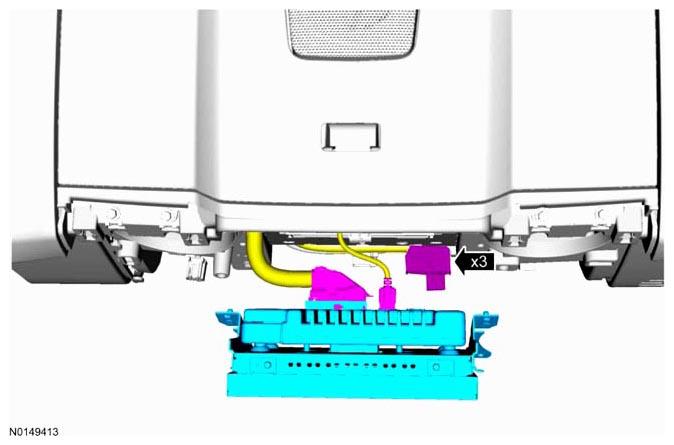

Remove the Front Controls Interface Module (FCIM). Front Controls Interface Module (FCIM).

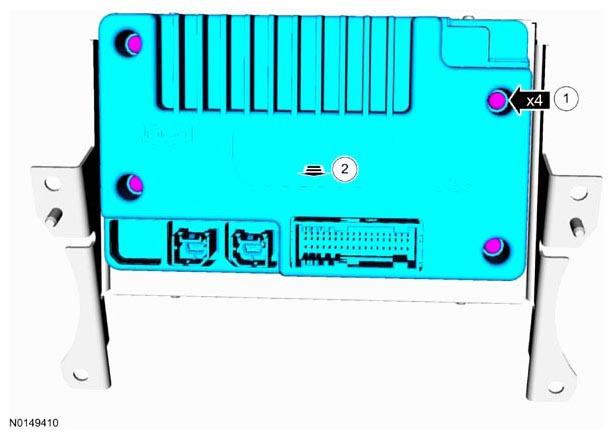

To install, tighten to 2.5 Nm (23 lb-in).
To install, tighten to 0.6 Nm (5 lb-in).
