CMP Sensor

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

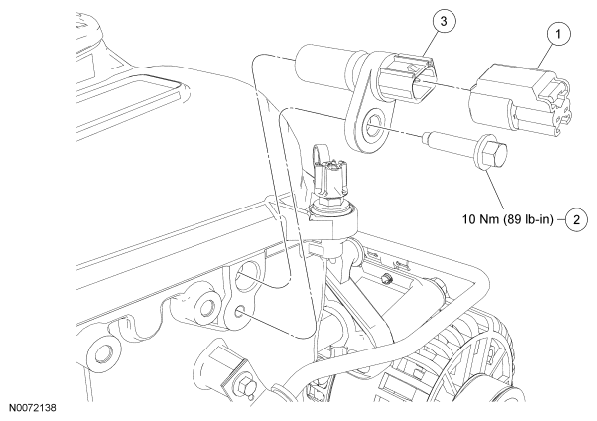

Fig 1: Camshaft Position Sensor, Electrical Connector And Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	CMP sensor electrical connector
2	N806155	CMP sensor bolt
3	6B288	CMP sensor
