Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

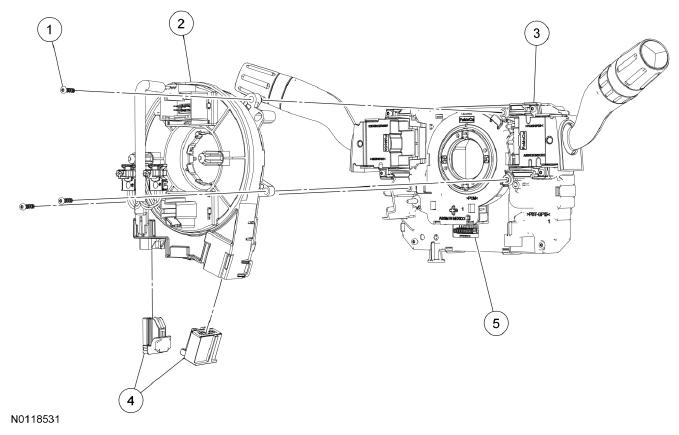

| Item | Part Number | Description |
|---|---|---|
| 1 | W506943 | Clockspring screws (3 required) |
| 2 | 14A664 | Clockspring |
| 3 | 3F791 | Steering Column Control Module (SCCM) |
| 4 | - | Clockspring electrical connector(s) (part of 14401) |
| 5 | - | SCCM electrical connector (part of 3F791) |
