Front Impact Severity Sensor
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

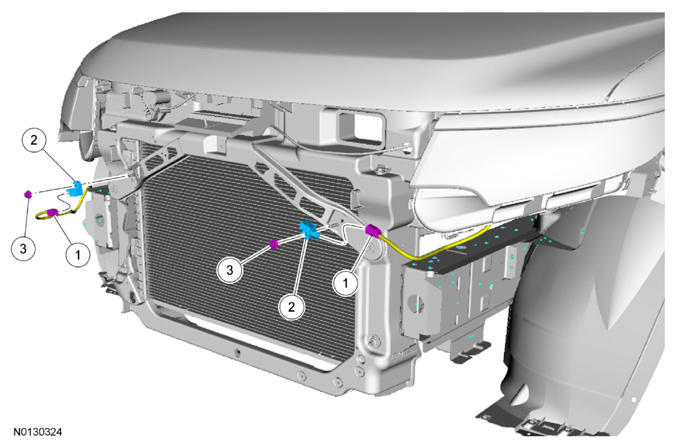

| Item | Part Number | Description |
|---|---|---|
| 1 | - | LH and RH front impact severity sensor electrical connectors (part of 14290) |
| 2 | 14B345 | LH and RH front impact severity sensors |
| 3 | W702751 | LH and RH front impact severity sensor nuts |
WARNING:
If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM
and sensors must be installed whether or not the airbags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Depower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Remove the front bumper cover. For additional information, refer to BUMPERS .
- Disconnect the affected front impact severity sensor electrical connector.
-
NOTE: Make sure the hood latch bracket and front impact severity sensor mating surfaces are clean and free of foreign material.NOTE: Note the position of the locator tab on the front impact severity sensor for correct installation.
Remove the affected nut and front impact severity sensor.
- To install, tighten to 11 Nm (97 lb-in).
- To install, reverse the removal procedure.
- Repower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
