Safety Canopy: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: RH side shown in illustration, LH side similar.

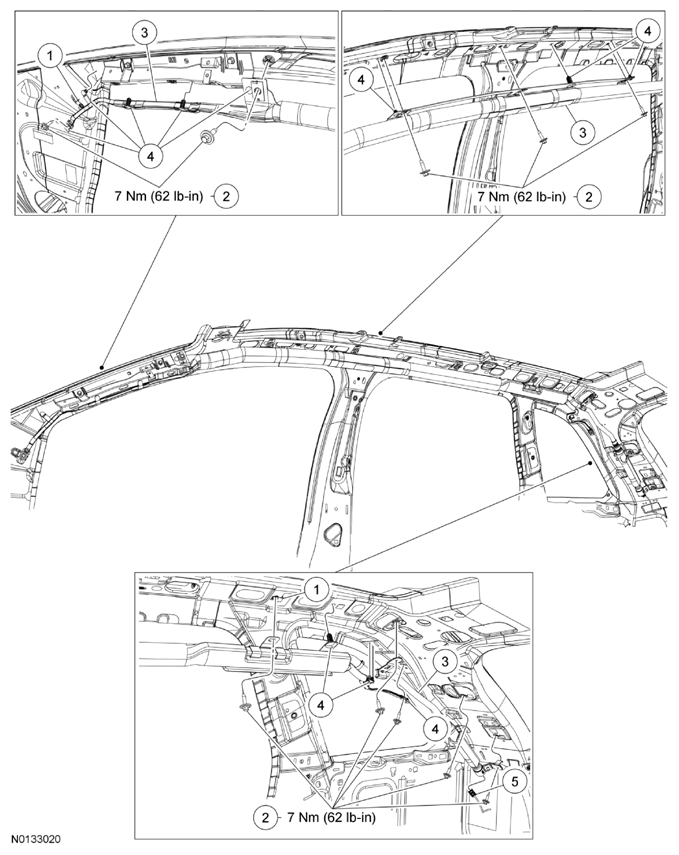

Fig 1: Safety Canopy(R) Module, Electrical Connector And Bolts With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W710739	J-nuts (2 required)
2	W713437	Safety Canopy® module bolts (10 required)
3	042D94 RH/042D95 LH	Safety Canopy® module
4	-	Safety Canopy® module pin-type retainer (11 required) (part of 042D94)
5	-	Safety Canopy® module electrical connector (part of 14A005)
