Fog Lamp: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

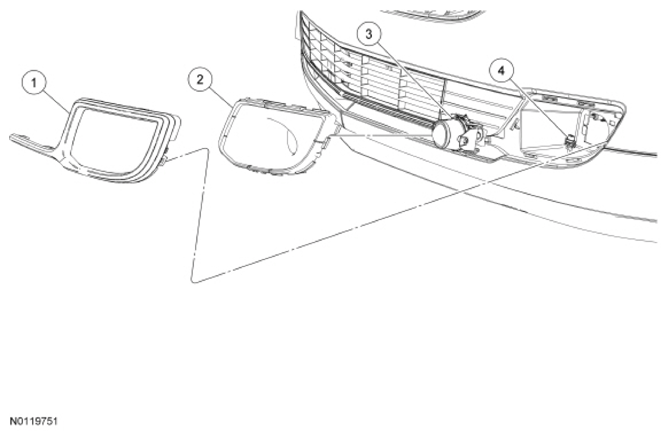

| Item | Part Number | Description |
|---|---|---|
| 1 | 15266 | Front fog lamp outer bezel (RH/LH) |
| 2 | 17E810/17E811 | Front fog lamp cover (RH/LH) |
| 3 | 15200 | Front fog lamp assembly (RH/LH) |
| 4 | - | Front fog lamp assembly electrical connector (part of 14290A) |
