Head Up Display (HUD) Module: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

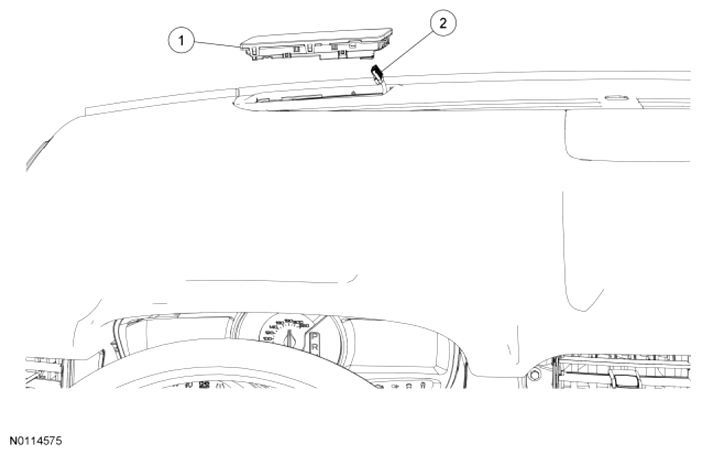

Fig 1: Identifying HUD Module With Electrical Connector

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	19G468	Head Up Display (HUD) module
2	-	HUD module electrical connector (part of 14401)
