Driver Side Climate Controlled Seat Backrest Module Connector - C3322
Driver Side Climate Controlled Seat Backrest Module Connector - C3322

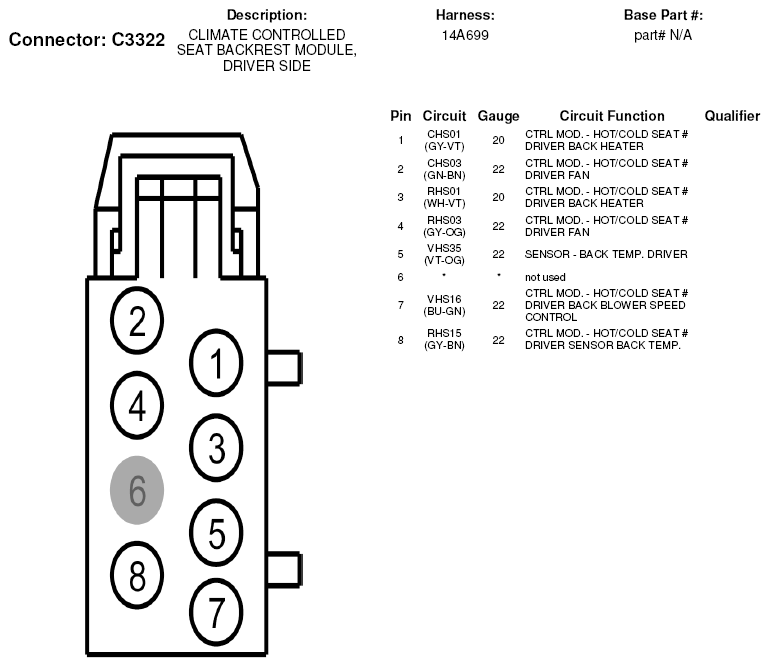

Fig 1: Driver Side Climate Controlled Seat Backrest Module Connector End View (C3322)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
