Fuel Tank Unit Connector - C433
Fuel Tank Unit Connector - C433

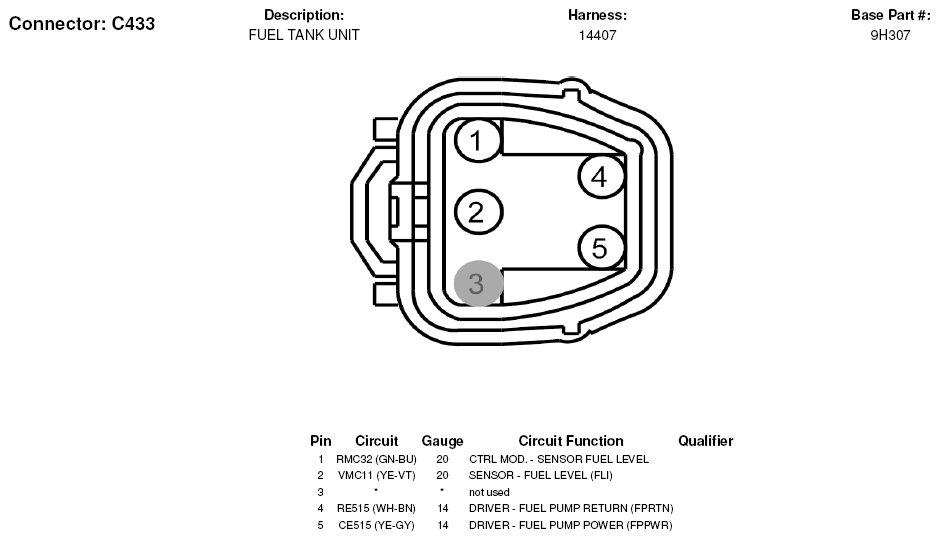

Fig 1: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
