Driver Air Bag Module: Notes

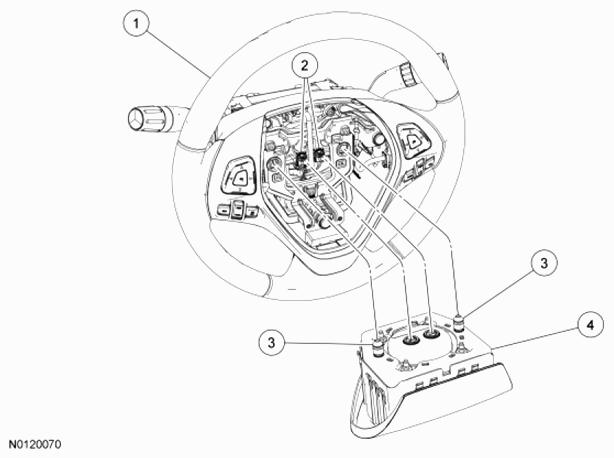

Fig 1: Identifying Driver Air Bag Module Components Location

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	3600	Steering wheel
2	-	Driver air bag module electrical connectors (part of 14A664)
3	-	Driver air bag module locking pins (part of 043B13)
4	043B13	Driver air bag module
