Steering Column Motor - Tilt
›
Notes
Steering Column Motor - Tilt: Notes

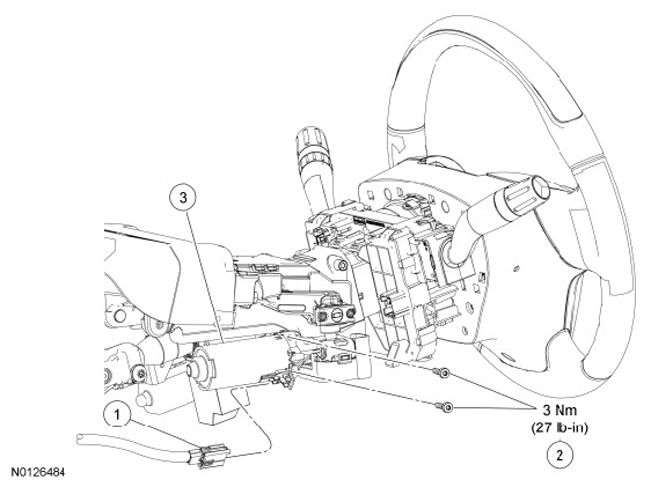

Fig 1: Steering Column Tilt Motor, Screws And Connectors With Torque Specifications
Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART
Item
Part Number
Description
1
-
Steering column tilt motor electrical connector (part of 14401)
2
W790120
Steering column tilt motor screws (2 required)
3
3D538
Steering column tilt motor
