Piston Pin Diameter
NOTE:
Refer to the ENGINE MECHANICAL - 3.5L
or ENGINE MECHANICAL - 3.7L
for the specification.

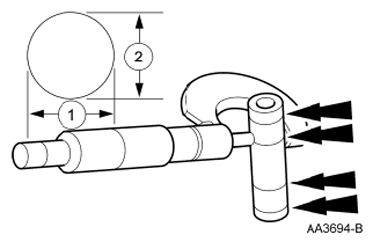

- Measure the piston pin diameter in 2 directions at the points shown in illustration. Verify the diameter is within specification.
