Valve Spring Installed Length

NOTE: Refer to the ENGINE MECHANICAL - 3.5L or ENGINE MECHANICAL - 3.7L for the specification.
  1. Measure the installed length of each valve spring.

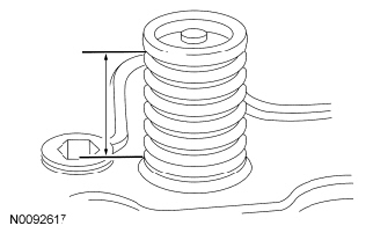

    Fig 1: Identifying Length Of Valve Spring
    G07397828Courtesy of FORD MOTOR CO.
