Automatic Climate Control System: Notes

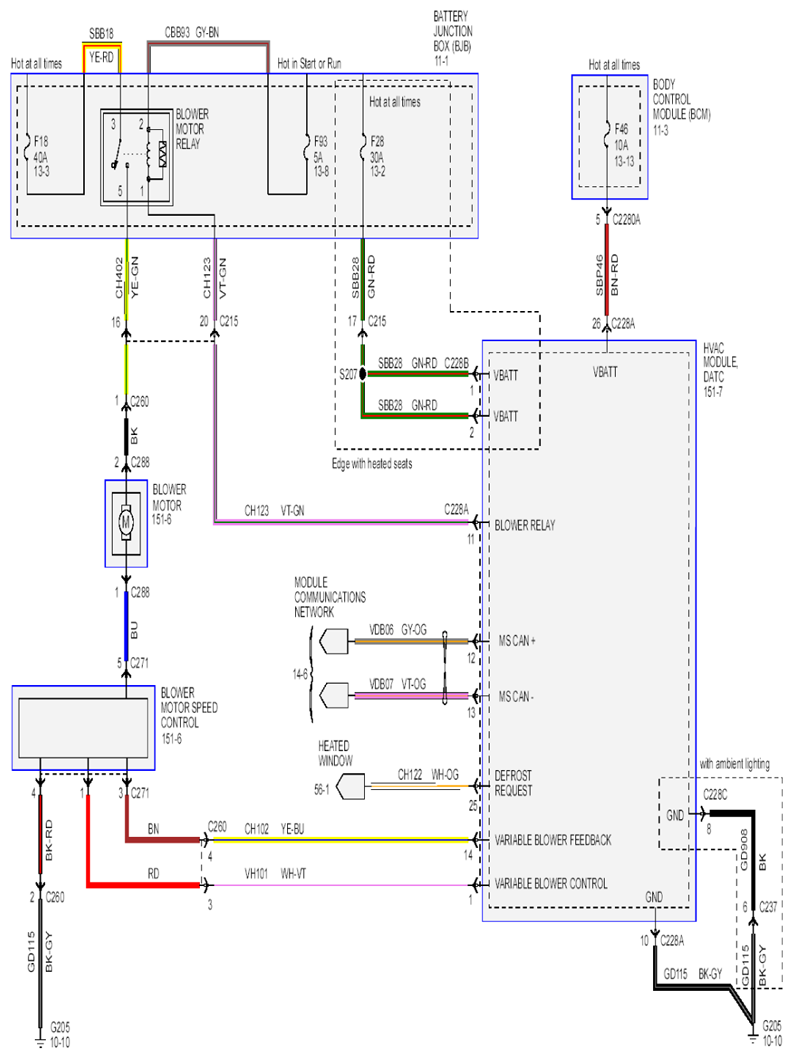

Fig 1: Automatic Climate Control System Circuit Diagram (1 Of 4)
G07854722Courtesy of FORD MOTOR CO.

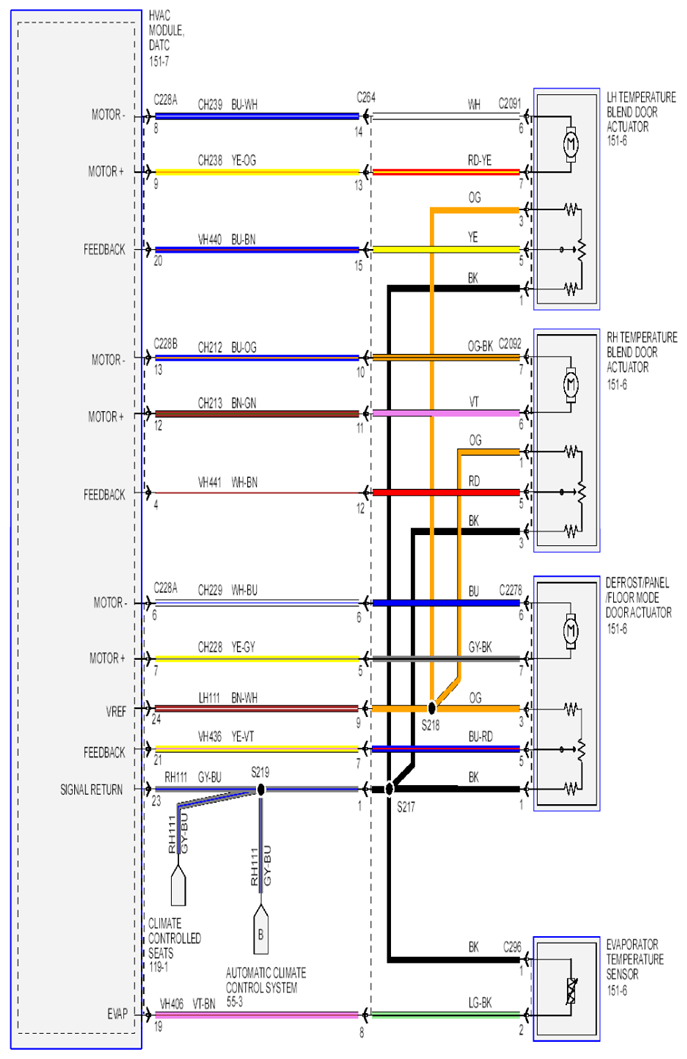

Fig 2: Automatic Climate Control System Circuit Diagram (2 Of 4)
G07854723Courtesy of FORD MOTOR CO.

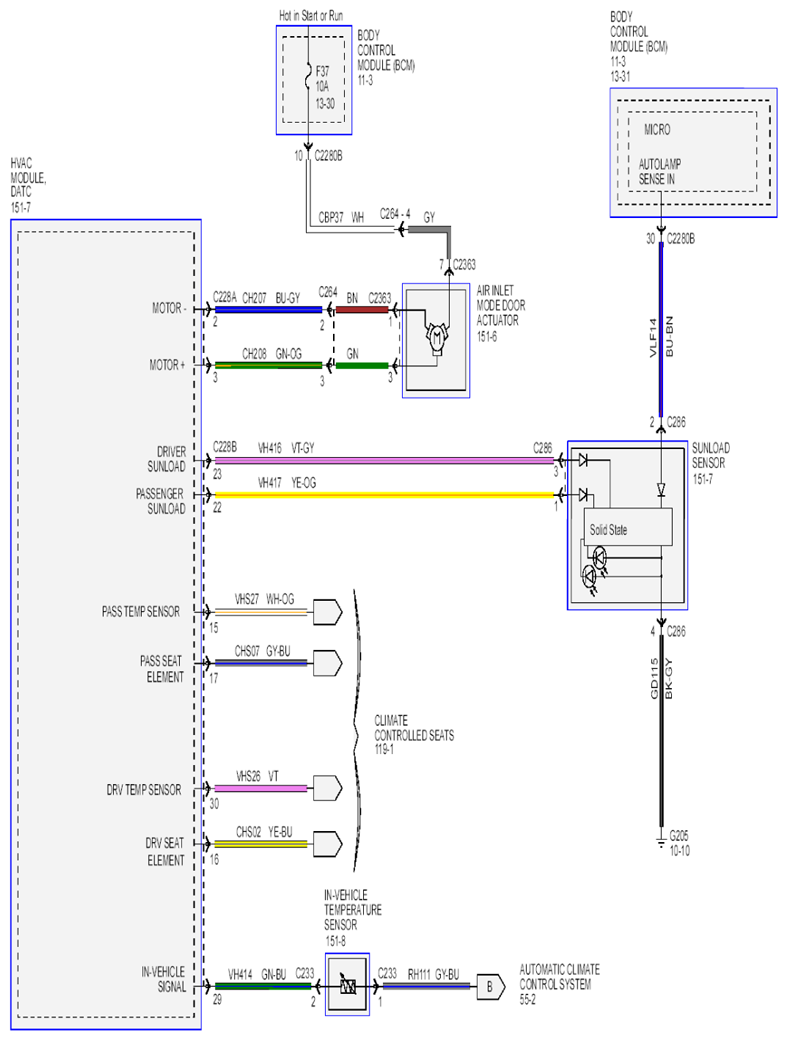

Fig 3: Automatic Climate Control System Circuit Diagram (3 Of 4)
G07854724Courtesy of FORD MOTOR CO.

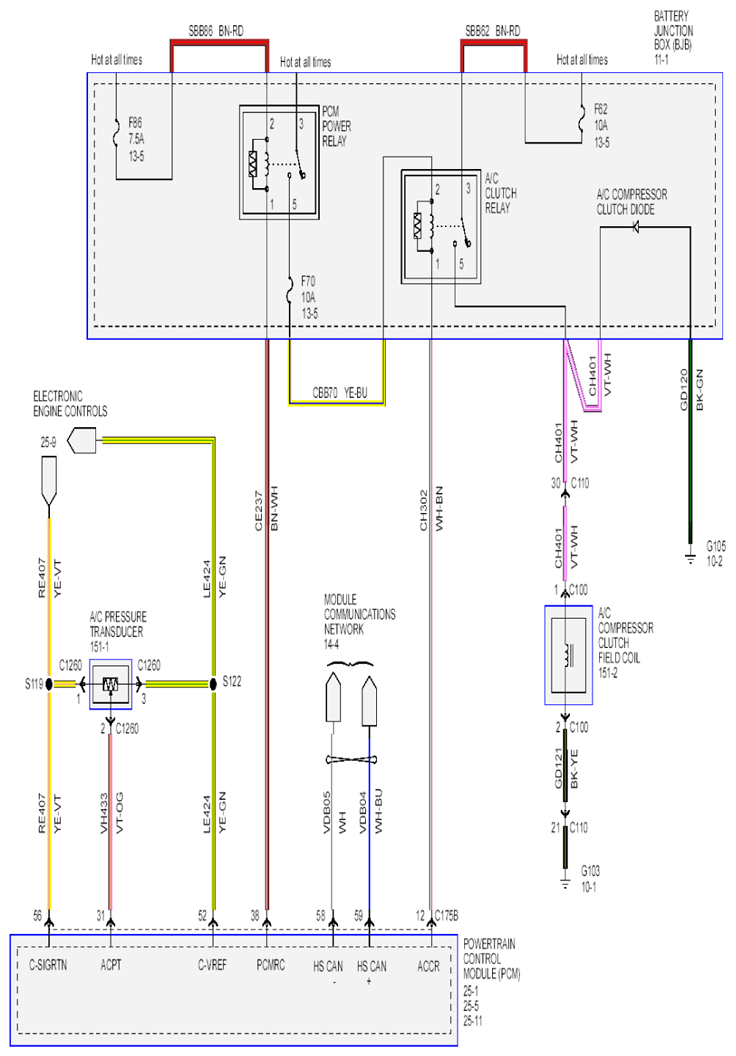

Fig 4: Automatic Climate Control System Circuit Diagram (4 Of 4)
G07854725Courtesy of FORD MOTOR CO.
