Anti-Lock Brake System Module Connector - C135

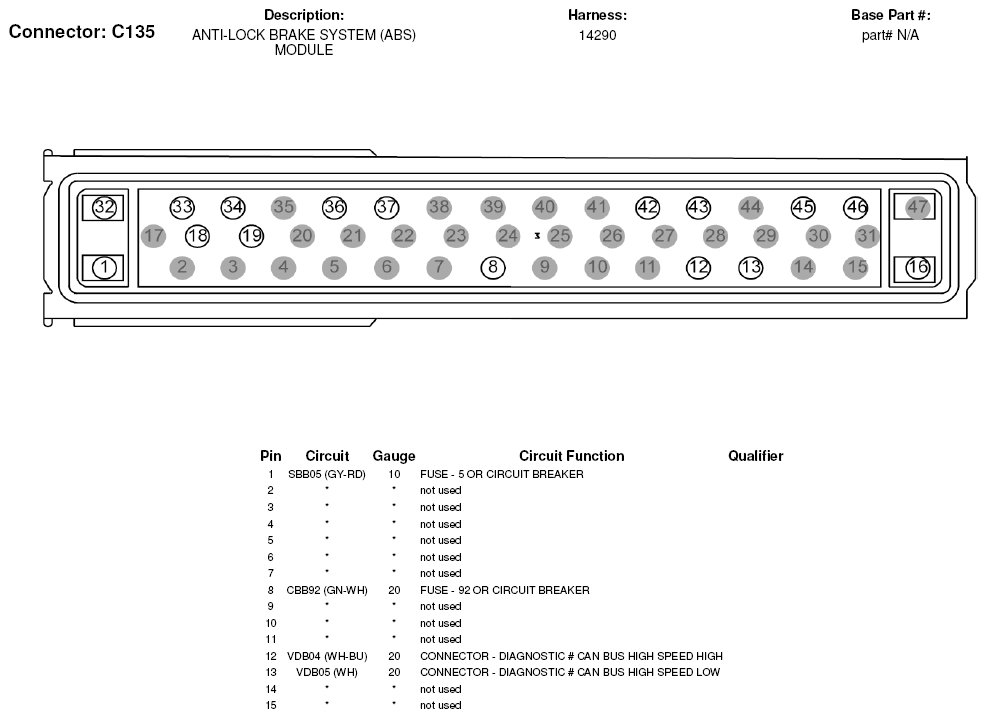

Fig 1: Anti-Lock Brake System Module Connector End View (C135) (1 Of 2)
G07326957Courtesy of FORD MOTOR CO.
Fig 2: Anti-Lock Brake System Module Connector End View (C135) (2 Of 2)
G07326958Courtesy of FORD MOTOR CO.
