Audio Control Module Connector - C240A

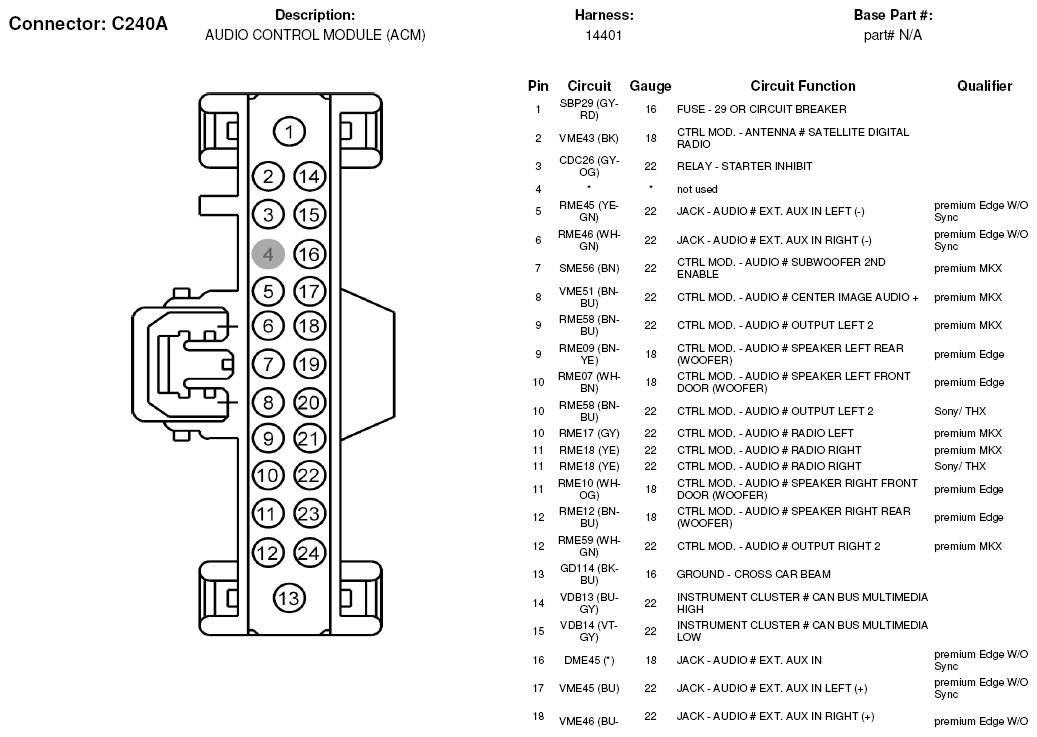

Fig 1: Audio Control Module Connector End View (C240A) (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Audio Control Module Connector End View (C240A) (2 Of 2)

Courtesy of FORD MOTOR CO.
