Audio Control Module Connector - C240B
Audio Control Module Connector - C240B

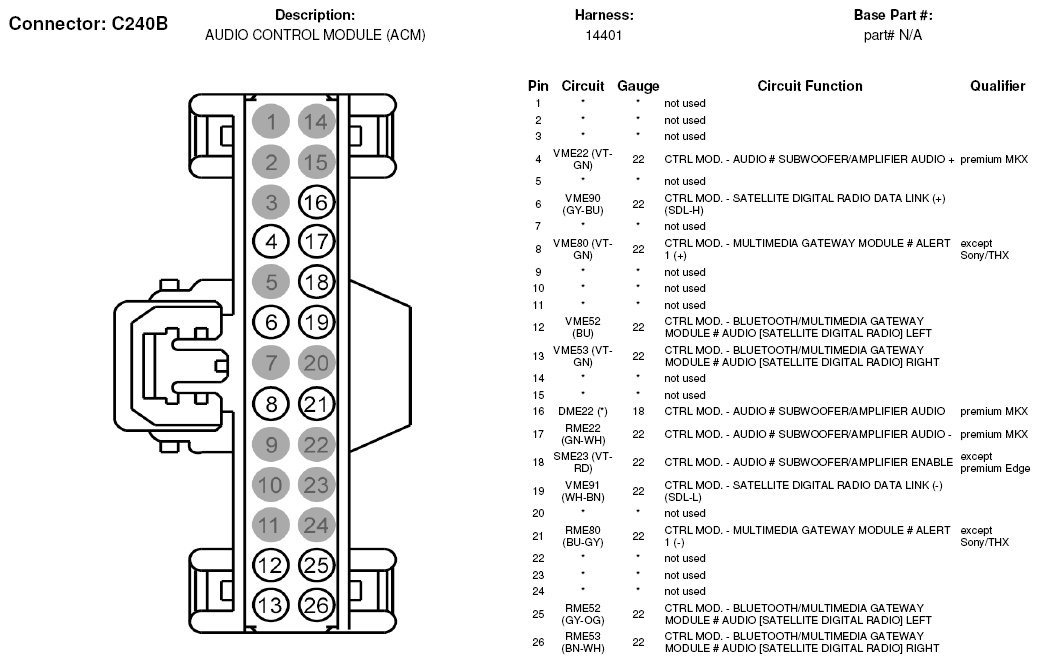

Fig 1: Audio Control Module Connector End View (C240B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
