Driver Safety Canopy Module Connector - C9018
Driver Safety Canopy Module Connector - C9018

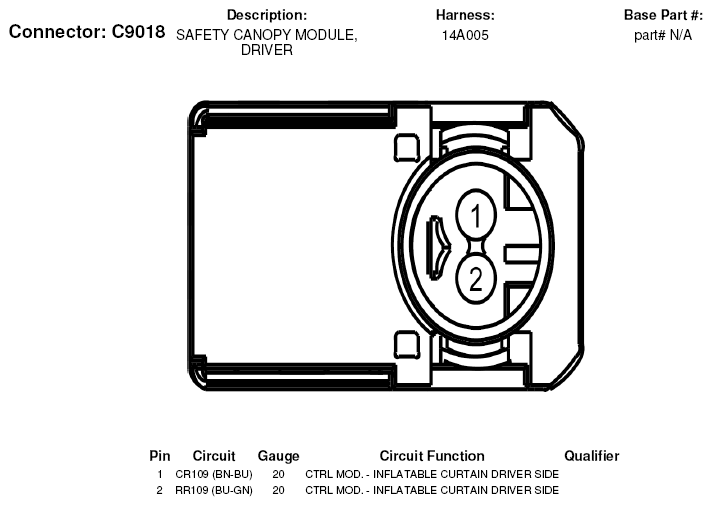

Fig 1: Driver Safety Canopy Module Connector End View (C9018)
Courtesy of FORD MOTOR CO.
