Front Lighting Control Module Connector - C205

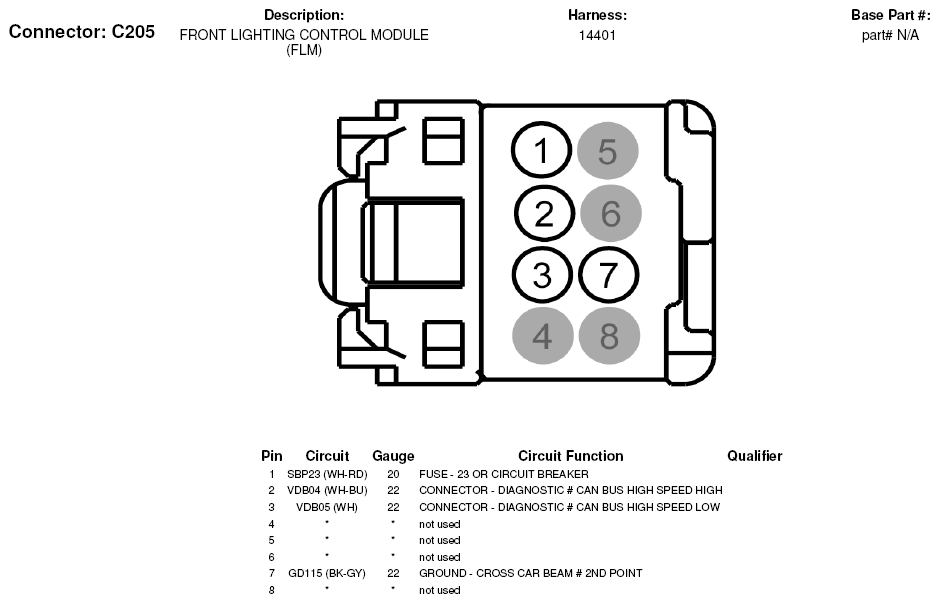

Fig 1: Front Lighting Control Module Connector End View (C205)
G07326986Courtesy of FORD MOTOR CO.
