Keyless Entry Keypad Connector - C500
Keyless Entry Keypad Connector - C500

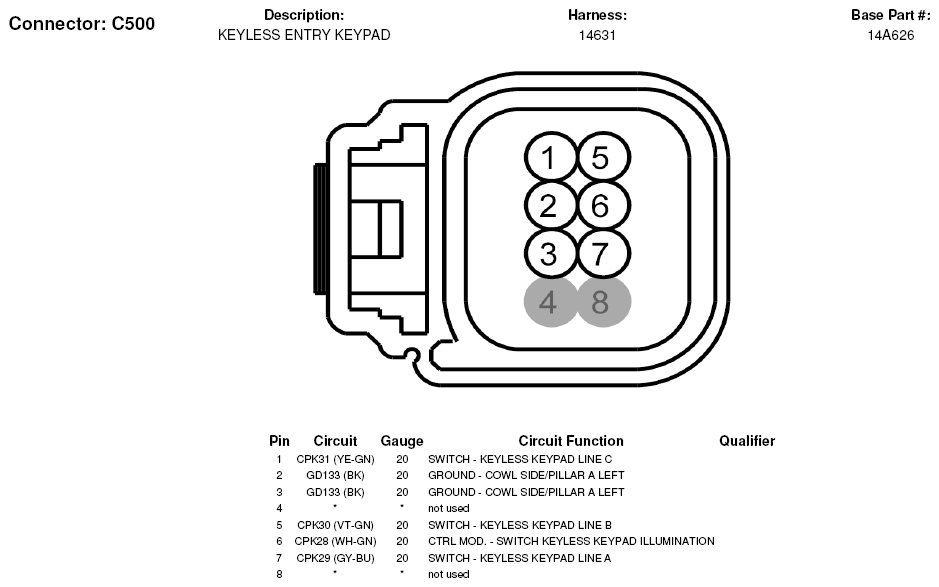

Fig 1: Keyless Entry Keypad Connector End View (C500)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
