Memory Set Switch Connector - C2094
Memory Set Switch Connector - C2094

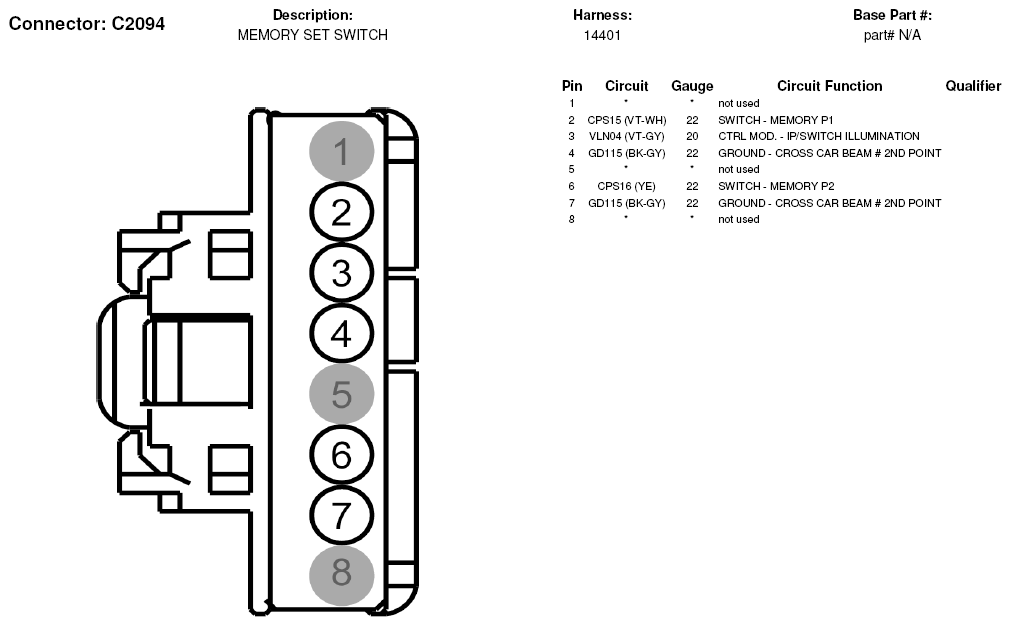

Fig 1: Memory Set Switch Connector End View (C2094)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
