Tire Pressure Monitor Module Connector - C4321

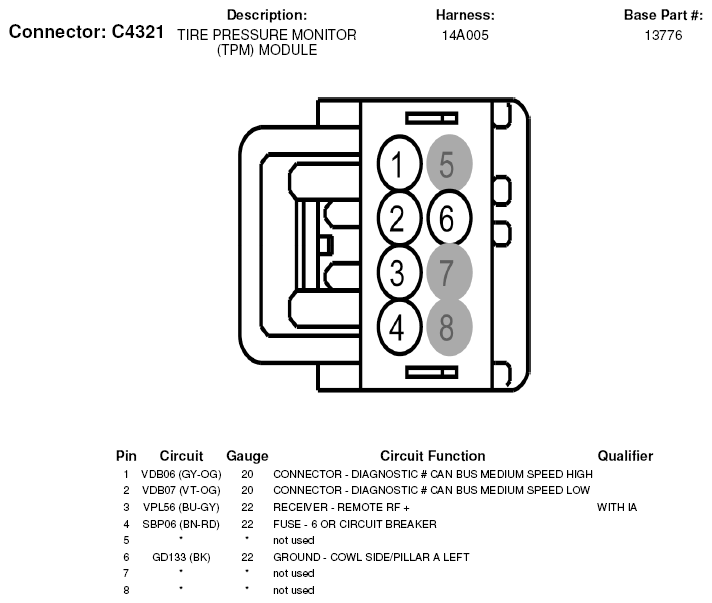

Fig 1: Tire Pressure Monitor Module Connector End View (C4321)
G07327299Courtesy of FORD MOTOR CO.
