Edge Instrument Panel

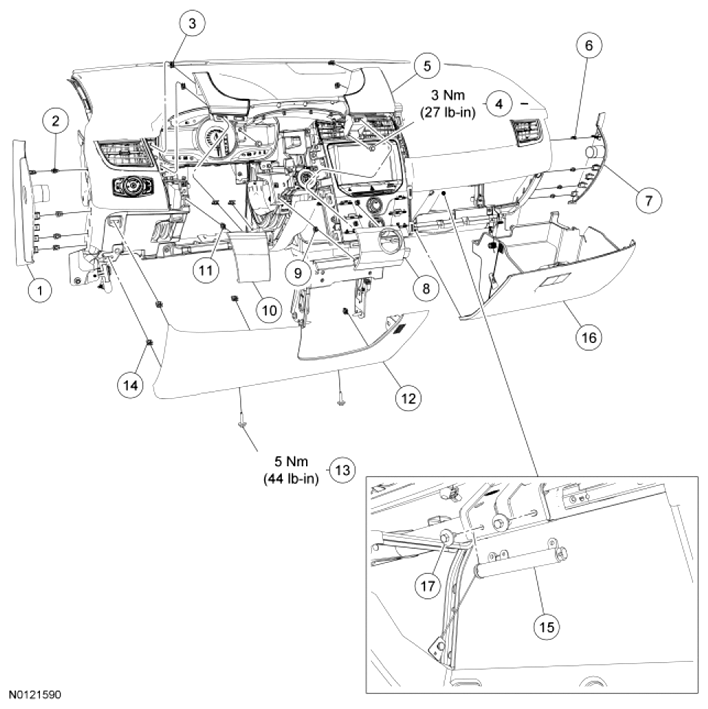

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7804481 | LH instrument panel side trim panel |
| 2 | W790178 | Clip (4 required) |
| 3 | W790178 | Clip (4 required) |
| 4 | W707628 | Instrument Panel Cluster (IPC) lower finish panel screws (2 required) |
| 5 | 78044D70 | IPC lower finish panel |
| 6 | W790178 | Clip (4 required) |
| 7 | 7804480 | RH instrument panel side trim panel |
| 8 | 7804338 | Right finish panel |
| 9 | W790178 | Clip (4 required) |
| 10 | 7804338 | Left finish panel |
| 11 | W712856 | Clip (3 required) |
| 12 | 7804459 | Steering column opening trim panel |
| 13 | W505424 | Steering column opening trim panel screw (2 required) |
| 14 | W790178 | Clip (5 required) |
| 15 | 7806200 | Glove compartment dampener |
| 16 | 7806024 | Glove compartment |
| 17 | W710506 | Glove compartment dampener screw (2 required) |
