Special Tool(s)
SPECIAL TOOLS REFERENCE CHART
| Pressure Gauge, Valve/Clutch Spring 303-006 (TOOL-6513-DD) or equivalent |
NOTE:
Refer to the ENGINE MECHANICAL - 3.5L
or ENGINE MECHANICAL - 3.7L
for the specification.

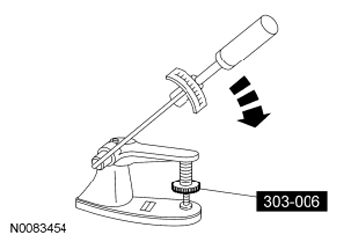

- Use the Valve/Clutch Spring Pressure Gauge to check the valve spring for correct strength at the specified valve spring length.
