Passive Anti-Theft System Transceiver Connector - C252
Passive Anti-Theft System Transceiver Connector - C252

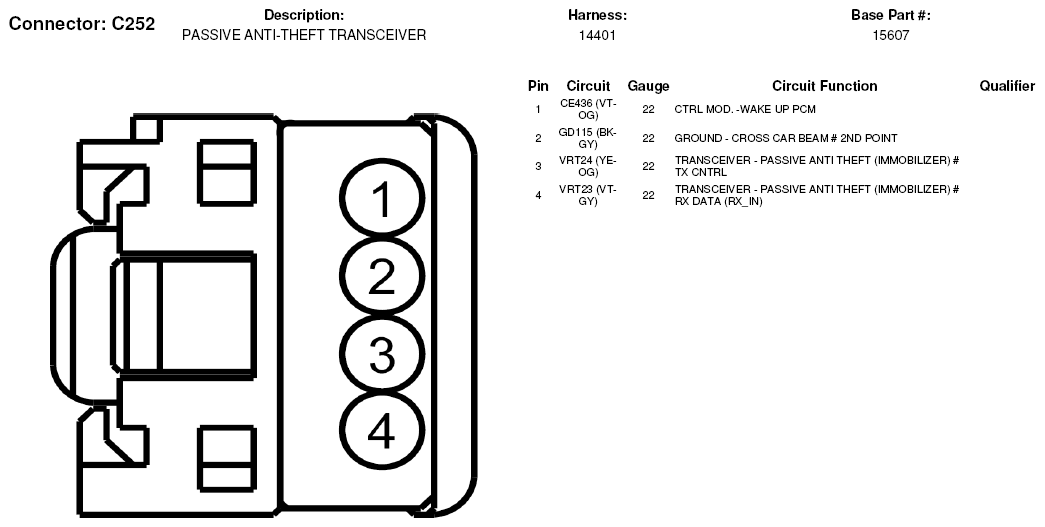

Fig 1: Passive Anti-Theft System Transceiver Connector End View (C252)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
