Main Control Cover: Installation

  1. Inspect the transaxle main control cover seal for damage and install new if necessary.

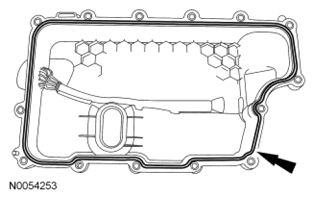

    Fig 1: Locating Main Control Cover Seal
    G07405410Courtesy of FORD MOTOR CO.
  2. NOTE: Inspect the 20-pin solenoid body connector seal to make sure that the seal is on the inside of the main control cover or a transmission fluid leak will occur resulting in transmission damage.
    NOTE: Install the studbolts in the locations noted during disassembly.
  3. Install the main control cover and loosely install the 14 bolts.
    1. Bolt location
    2. Studbolt location

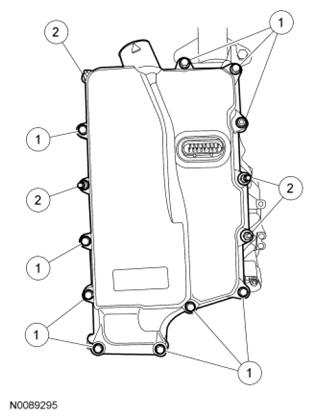

      Fig 2: Identifying Main Control Cover Bolts And Studbolt
      G07405411Courtesy of FORD MOTOR CO.
  4. Tighten the main control cover bolts in the sequence shown in the illustration.
    • Tighten to 12 Nm (106 lb-in).

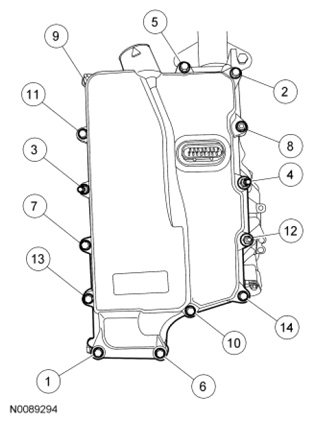

      Fig 3: Identifying Main Control Cover Bolts Tightening Sequence
      G07405412Courtesy of FORD MOTOR CO.
  5. Position the transmission fluid cooler thermal bypass valve and transmission fluid cooler tube assembly in place and install the 2 transmission fluid cooler thermal bypass valve bracket nuts.
    • Tighten to 9 Nm (80 lb-in).

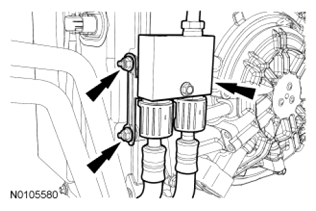

      Fig 4: Locating Transmission Fluid Cooler Thermal Bypass Valve Bracket Nuts
      G07405413Courtesy of FORD MOTOR CO.
  6. Connect the transaxle electrical connector.

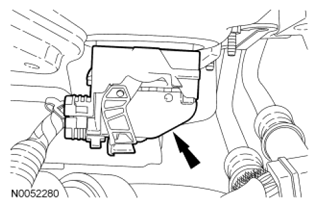

    Fig 5: Locating Transaxle Electrical Connector
    G07405414Courtesy of FORD MOTOR CO.
  7. Inspect the transmission fluid cooler tube backing ring and seal for damage and install a new backing ring or seal if necessary. Lubricate the transmission fluid cooler tube seal with clean transmission fluid and install the backing ring and seal on the transmission fluid cooler tube.
    Fig 6: Identifying Seal And Backing Ring
    G07405415Courtesy of FORD MOTOR CO.
    ITEM DESCRIPTION CHART

    Item Part Number Description
    1 7D285 Seal
    2 7J324 Backing ring
  8. Position the transmission fluid cooler tube in place and install a new bolt.
    • Tighten to 9 Nm (80 lb-in).
      Fig 7: Locating Transmission Fluid Cooler Tube And Bolt
      G07405416Courtesy of FORD MOTOR CO.
  9. Tighten the transmission fluid cooler tube fitting.
    • Tighten to 30 Nm (22 lb-ft).
      Fig 8: Locating Transmission Fluid Cooler Tube Fitting
      G07405417Courtesy of FORD MOTOR CO.
  10. Position the ACL  assembly in place and install the bolt.
    • Tighten to 11 Nm (97 lb-in).

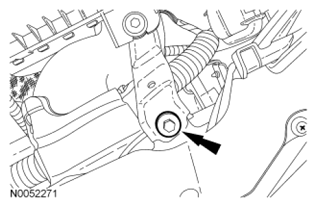

      Fig 9: Locating ACL Assembly And Mounting Bolt
      G07405418Courtesy of FORD MOTOR CO.
  11. Tighten the ACL  outlet pipe clamp at the TB  .
    • Tighten to 5 Nm (44 lb-in).

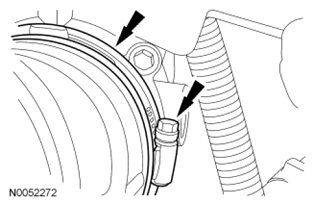

      Fig 10: Locating Air Cleaner Outlet Pipe And Pipe Clamp
      G07405419Courtesy of FORD MOTOR CO.
  12. Connect the engine breather to the ACL  assembly.
    Fig 11: Locating Engine Breather
    G07405420Courtesy of FORD MOTOR CO.
  13. Connect the brake booster vacuum hose to the ACL  assembly.
    Fig 12: Locating Brake Booster Vacuum Hose
    G07405421Courtesy of FORD MOTOR CO.
  14. Connect the MAF  sensor electrical connector and connect the electrical harness fastener.
    Fig 13: Locating MAF Sensor Electrical Connector And Harness Fastener
    G07405422Courtesy of FORD MOTOR CO.
  15. Fill with clean transmission fluid to the correct level.
