Throttle Body: Notes

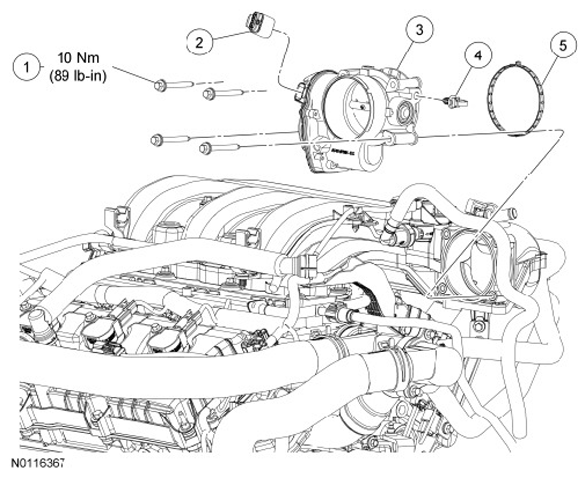

Fig 1: Exploded View Of Throttle Body With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W713443	Throttle Body (TB) bolt (4 required)
2	14A464	Throttle body electrical connector (part of 12A581)
3	9E926	TB
4	-	Fuel vapor tube retainer (part of 9J280)
5	9E936	TB gasket
