Battery Current Sensor Connector - C1646
Battery Current Sensor Connector - C1646

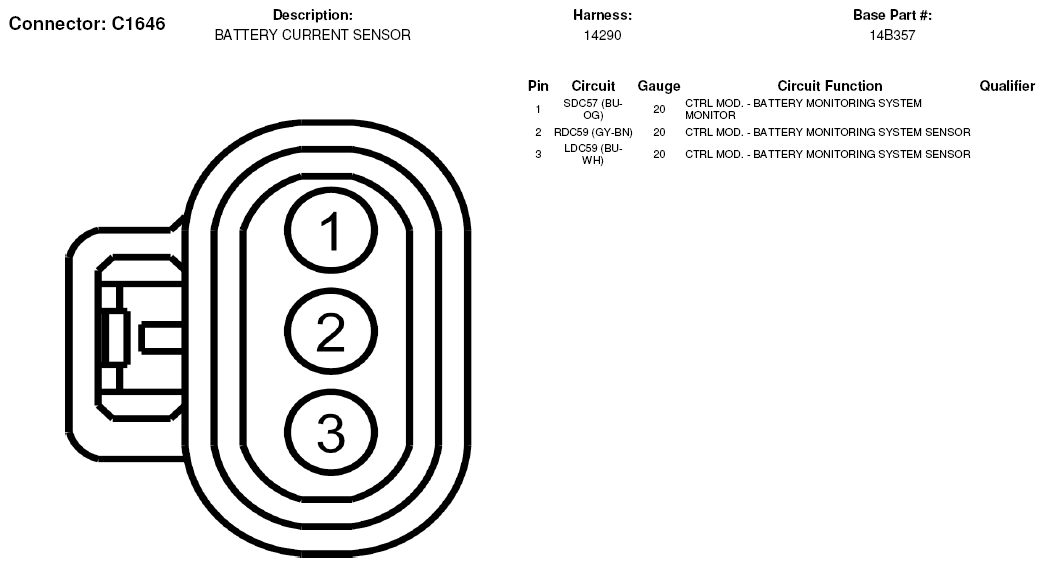

Fig 1: Battery Current Sensor Connector End View (C1646)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
