Blower Motor Speed Control: Notes

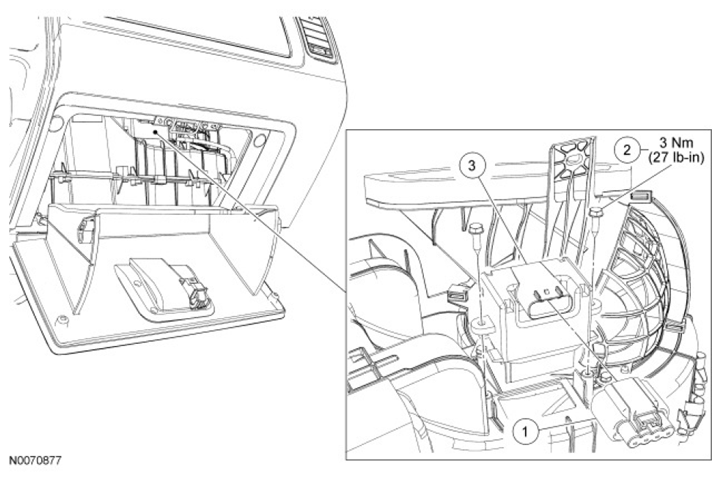

Fig 1: Blower Motor Speed Control Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Blower motor speed control electrical connector (part of 19D887)
2	W701696	Blower motor speed control screw (2 required)
3	19E624	Blower motor speed control
