Seat Backrest - Rear: Notes
NOTE:

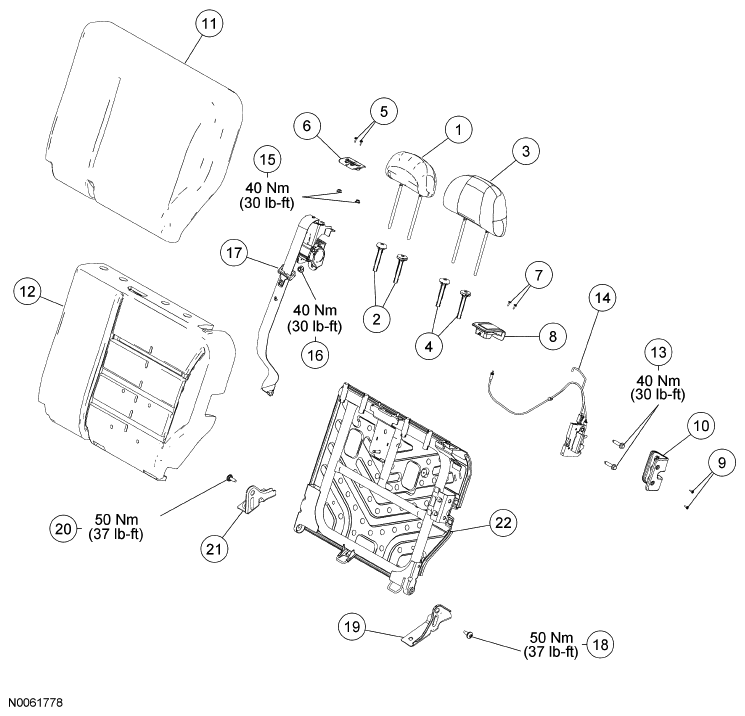

LH (60 percent) shown in illustration, RH (40 percent) similar.
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint (center) |
| 2 | 610A16 | Head restraint guides (center) |
| 3 | 611A08 | Head restraint |
| 4 | 610A16 | Head restraint guides |
| 5 | 60108 | Safety belt shield screws |
| 6 | 611A70 | Safety belt shield |
| 7 | - | Seat latch release handle screws |
| 8 | 624A09 | Seat latch release handle |
| 9 | 60108 | Latch cover screws |
| 10 | 666L76 | Latch cover |
| 11 | 66601 | Backrest cover |
| 12 | 66801 | Backrest foam pad |
| 13 | W500720 | Backrest latch bolts |
| 14 | 61383 | Backrest latch |
| 15 | W520112 | Safety belt guide nuts |
| 16 | W520113 | Center safety belt retractor nut |
| 17 | 611B64 | Center safety belt retractor |
| 18 | 60108 | Outboard pivot bolt |
| 19 | 60592 | Outboard pivot bracket |
| 20 | 60108 | Inboard pivot bolt |
| 21 | 60592 | Inboard pivot bracket |
| 22 | 613A39 | Backrest frame |
