Seat - Front: Notes

NOTE: Driver power seat shown in illustration, manual and passenger seats similar.

NOTE: For torque specifications and torque sequence, Refer to the procedure steps.

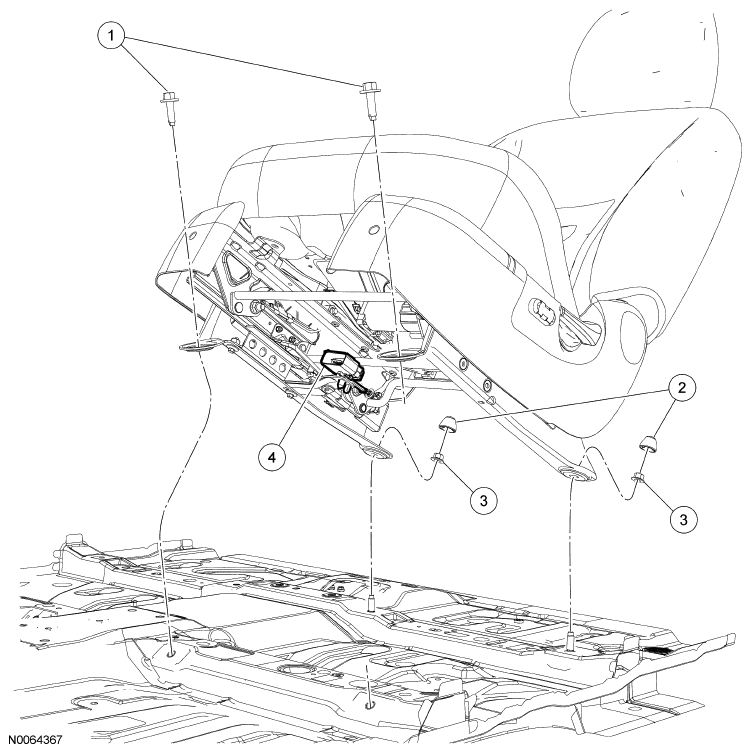

Fig 1: Identifying Seat Components - Front

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W707122	Seat front mounting bolts (driver seat) (2 required)
1	W713271	Seat front mounting bolts (passenger seat) (2 required)
2	611D02	Nut covers
3	W707654	Seat rear mounting nuts
4	-	Electrical connector (part of 14C719)
