Wheel Speed Sensor Ring - Rear
›
Notes
Wheel Speed Sensor Ring - Rear: Notes

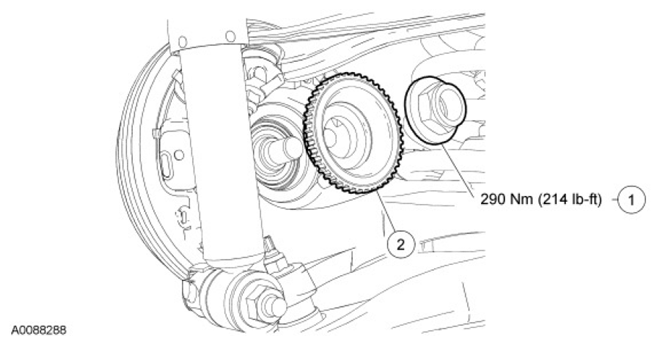

Fig 1: Rear Wheel Speed Sensor Ring Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION
Item
Part Number
Description
1
W705967
Rear wheel hub nut
2
2C1869
Sensor ring
