Engine Ignition RH

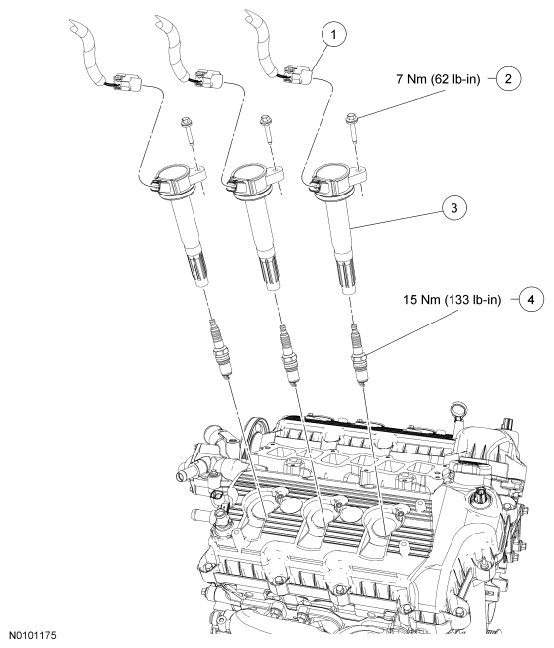

Fig 1: Exploded View Of Engine Ignition System RH Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	14A464	RH ignition coil electrical connector (3 required)
2	W708833	RH ignition coil bolt (3 required)
3	12A375	RH ignition coil (3 required)
4	12405	RH spark plug (3 required)

For additional information, refer to the appropriate procedures in this service information.
