OEM Wiring Diagrams: Audio_System_Navigation: Notes

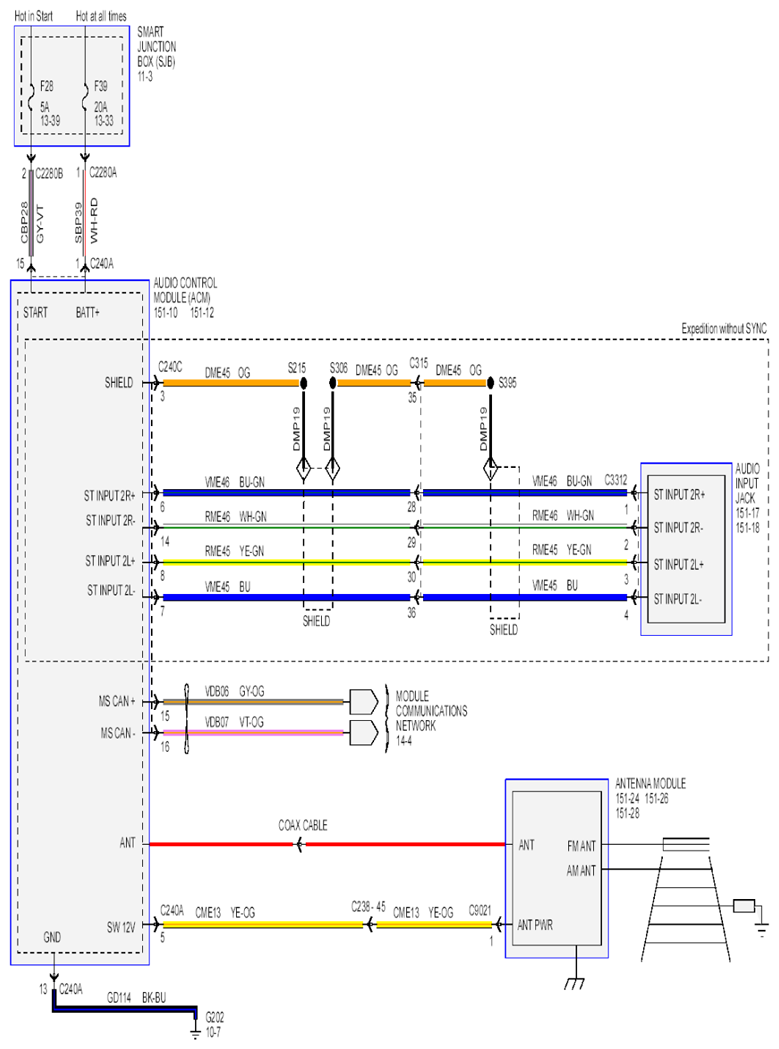

Fig 1: Audio System Navigation Schematic
G07856485Courtesy of FORD MOTOR CO.
