Removal And Installation: Radiator: Notes

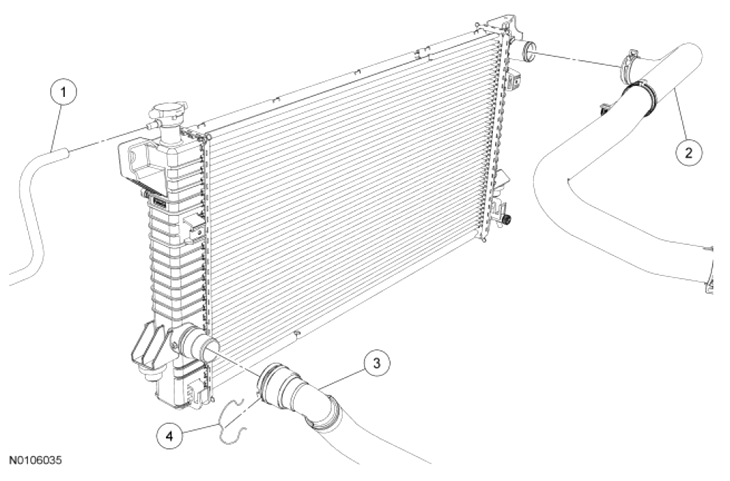

Fig 1: Locating Radiator Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	8075	Radiator overflow hose
2	8260	Upper radiator hose
3	8286	Lower radiator hose
4	8B365	Lower radiator hose spring clip

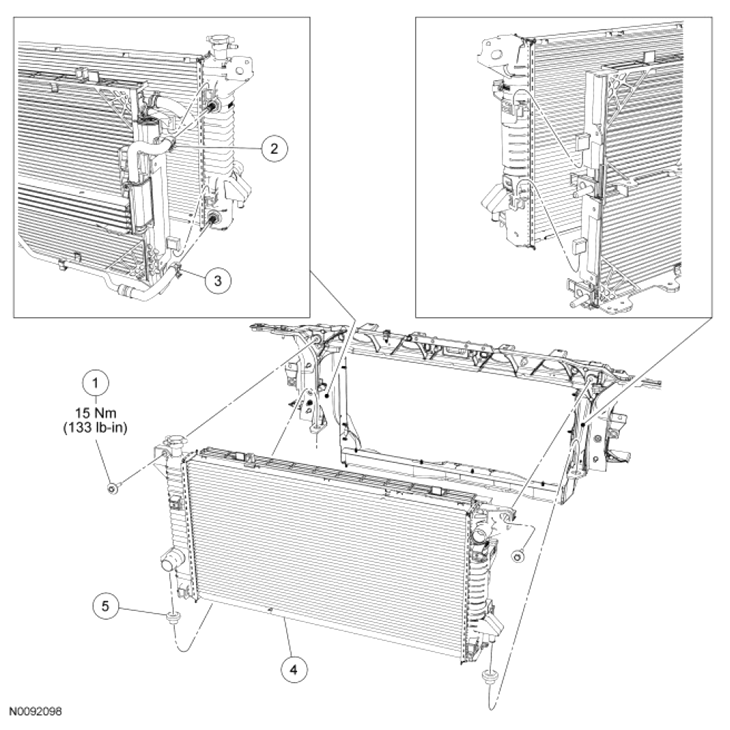

Fig 2: Exploded View Of Radiator Components With Torque Specification

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W503924	Radiator bolt (2 required)
2	7C410	Transmission fluid cooler-to-radiator upper hose
3	7B028	Transmission fluid cooler-to-radiator lower hose
4	8005	Radiator
5	8124	Radiator insulator (2 required)
