Blower Motor: Notes

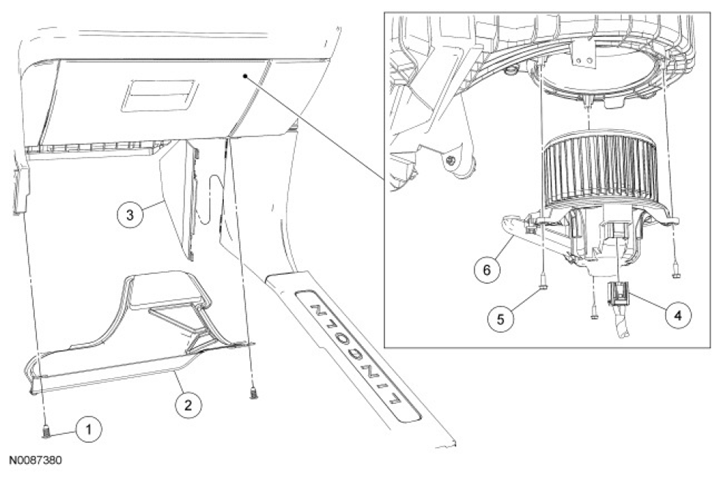

Fig 1: Exploded View Of Blower Motor Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	N811040	RH lower instrument panel insulator pin-type retainer (2 required)
2	78046A24	RH lower instrument panel insulator
3	02348	Junction box cover
4	-	Blower motor electrical connector (part of 18B518)
5	W701696	Blower motor screw (3 required)
6	19805	Blower motor
