Steering Wheel Rotation Sensor: Notes

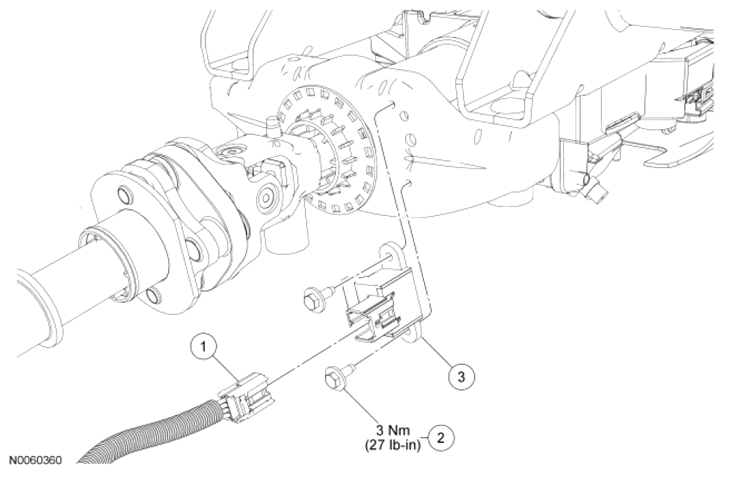

Fig 1: Exploded View Of Steering Wheel Rotation Sensor With Torque Specifications
Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART
Item
Part Number
Description
1
-
Steering wheel rotation sensor electrical connector (part of 14489)
2
N802141
Steering wheel rotation sensor bolt (2 required)
3
3F818
Steering wheel rotation sensor
