Removal and Installation

  1. Apply the parking brake and move the shift lever to NEUTRAL.
  2. Remove the shift lever trim ring.

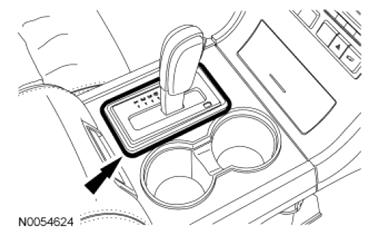

    Fig 1: Locating Selector Lever Trim Ring
    G07457836Courtesy of FORD MOTOR CO.
  3. Remove the front floor console finish panel.
  4. Remove the lower instrument panel finish panel in the following sequence.
    1. Remove the 2 lower instrument panel finish panel screws.
    2. Pull out on the panel to disengage the clips.
    3. Disconnect the electrical connectors.
  5. Press the 4 tabs and remove the stability/traction control switch assembly.

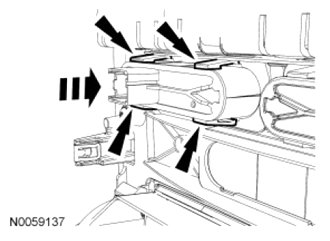

    Fig 2: Locating Stability/Traction Control Switch Assembly Tabs
    G07457837Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
