Piston Pin Diameter

NOTE: Refer to the appropriate ENGINE MECHANICAL - 5.4L (3V) for the specification.
  1. Measure the piston pin diameter in 2 directions at the points shown. Verify the diameter is within specification.

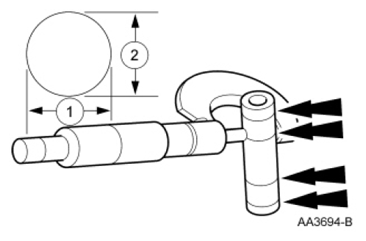

    Fig 1: Measuring Piston Pin Diameter
    G07456148Courtesy of FORD MOTOR CO.
