Piston Selection

NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston.

Select a piston size based on the cylinder bore.

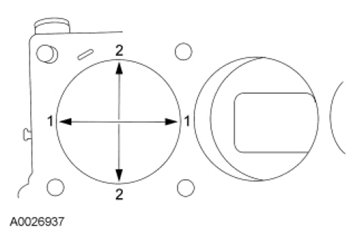

Fig 1: Directions Of Measuring Cylinder Bore Taper
Courtesy of FORD MOTOR CO.

NOTE: For precision fit, new pistons are divided into 3 categories within each size range based on their relative position within the range. A paint spot or specific size grade on a new piston indicates the position within the size range.

Choose the piston with the correct paint color or specific size grade.
- Refer to the appropriate information in the ENGINE MECHANICAL - 5.4L (3V) article or the procedure.

  Fig 2: Locating Piston Paint Color
  Courtesy of FORD MOTOR CO.
