Valve Guide Inner Diameter

NOTE: Refer to the appropriate ENGINE MECHANICAL - 5.4L (3V) for the specification.

NOTE: Valve guides tend to wear in an hourglass pattern. The ball gauge can be inserted into the combustion chamber side of the valve guide, if necessary.

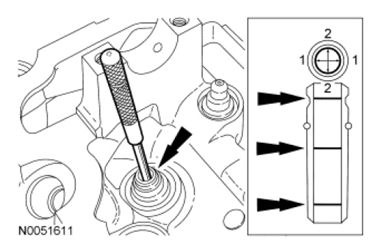

Fig 1: Measuring Valve Guide Inner Diameter

Courtesy of FORD MOTOR CO.

Use a ball gauge to determine the inside diameter of the valve guides in 2 directions at the top, middle and bottom of the valve guide.
Measure the ball gauge with a micrometer.

Fig 2: Measuring Ball Gauge With Micrometer
Courtesy of FORD MOTOR CO.
If the valve guide is not within specifications, install a new cylinder head assembly.
