Valve Spring Free Length

NOTE: Refer to the appropriate ENGINE MECHANICAL - 5.4L (3V) for the specification.
  1. Measure the free length of each valve spring.

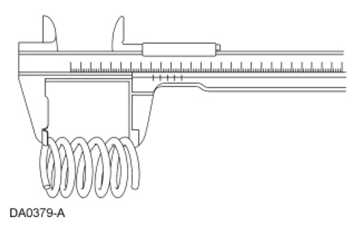

    Fig 1: Measuring Free Length Of Valve Spring
    G07456172Courtesy of FORD MOTOR CO.
