Blower Motor Speed Control: Notes

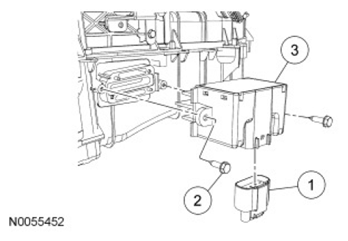

Fig 1: Exploded View Of Blower Motor Speed Control With Screw And Electrical Connector
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART
Item
Part Number
Description
1
-
Blower motor speed control electrical connector (part of 18B518)
2
W701696
Blower motor speed control screw (2 required)
3
19E624
Blower motor speed control
