Exploded View

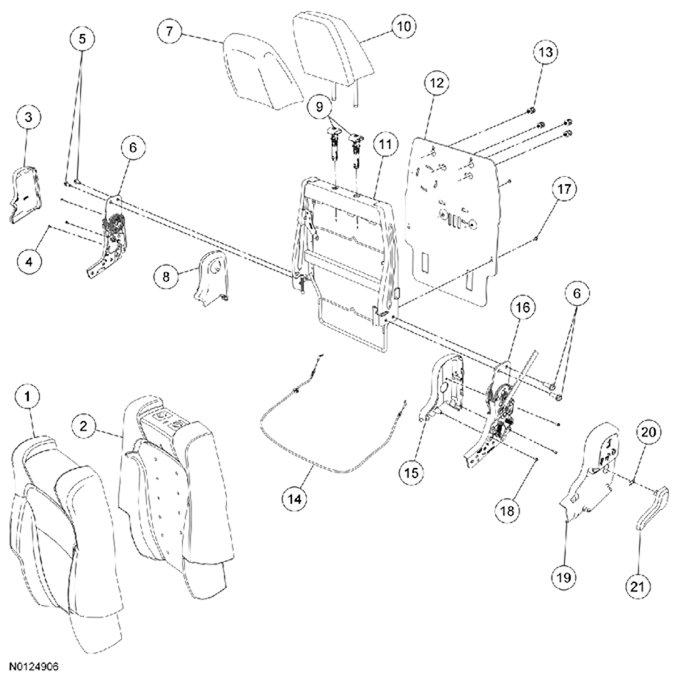

Fig 1: Exploded View Of Seat - 40 Percent Backrest
G07427178Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Service Part Number Description Tool Number Material Name Notes
1 66600 Right Hand (RH)/ 66601 Left Hand (LH) Backrest cover - - -
2 66800 Backrest foam pad - - -
3 61348 Inboard recliner outer cover - - -
4 W506943 Screw (3 required) - - -
5 W790117 Recliner-to-backrest frame bolts 48 Nm (35 lb-ft) - -
6 61382 Inboard recliner - - -
7 501A04 Right Hand (RH)/ 501A05 Left Hand (LH) Head restraint cover - - -
8 61348 Inboard recliner inner cover - - -
9 610A16 Right Hand (RH) (locking)/ 610A18 Left Hand (LH) (non-locking) Head restraint guide sleeve - - -
10 611A08 Head restraint - - -
11 613A38 Backrest frame - - -
12 60508 Hard back panel (includes 2 retainers) - - -
13 W710250 Pin-type retainer (2 required) - - -
14 Part of 61382 Recliner cable - - -
15 67460 Outboard recliner inner cover - - -
16 61382 Outboard recliner - - -
17 56910 Hard back panel-to-backrest frame screw (2 required) - - -
18 W506943 Screw (3 required) - - -
19 67460 Outboard recliner outer cover - - -
20 W790123 Spring clips - - -
21 617D34 Right Hand (RH)/ 617D35 Left Hand (LH) Recliner handle - - -

Figure 2: 40 Percent Cushion

NOTE: Left Hand (LH) shown in illustration, Right Hand (RH) similar.
NOTE: For information on the deployable safety belts, REFER to SAFETY BELT BUCKLE - 2ND ROW, 40 PERCENT SEAT, WITH INFLATABLE SAFETY BELTS and REFER to SAFETY BELT INFLATOR - 2ND ROW, 40 PERCENT .

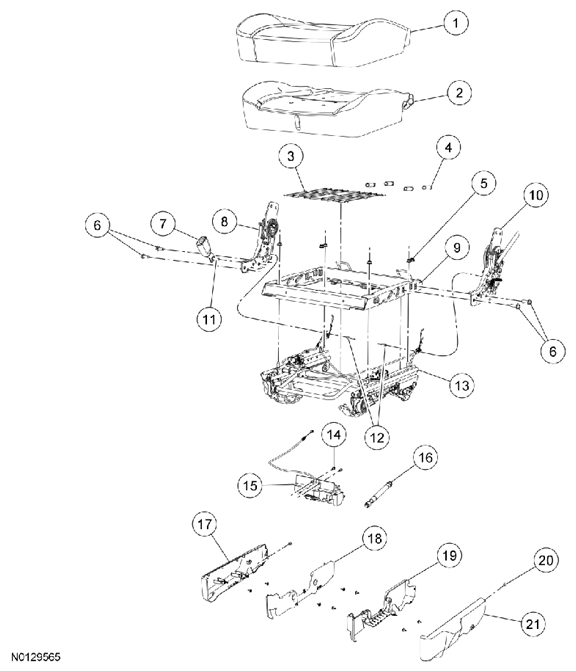

Fig 2: Exploded View Of Seat - 40 Percent Cushion
G07427179Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Service Part Number Description Tool Number Material Name Notes
1 63804 Right Hand (RH)/ 63805 Left Hand (LH) Cushion cover - - -
2 63840 Cushion foam pad - - -
3 Part of 63160 Flex mat - - -
4 Part of 63160 Flex mat spring (4 required) - - -
5 W520112 Cushion frame-to-riser nut (6 required) 23 Nm (17 lb-ft) - -
6 W790117 Recliner-to-cushion frame bolts 48 Nm (35 lb-ft) - -
7 60044 Safety belt buckle (without deployable safety belt system) - - -
8 61382 Right Hand (RH)/ 61383 Left Hand (LH) Inboard recliner - - -
9 63160 Cushion frame - - -
10 61382 Right Hand (RH)/ 61383 Left Hand (LH) Outboard recliner - - -
11 Part of 60044 Safety belt buckle bolt (without deployable safety belt system) 40 Nm (30 lb-ft) - -
12 W715435 Rivets - - -
13 606A50 Right Hand (RH)/ 606A51 Left Hand (LH) Seat track - - -
14 W506841 Power-fold seat motor screw (2 required) - - -
15 600E22 Power release seat motor - - -
16 624B74 Strut - - -
17 63388 Seat track inboard outer cover - - -
18 63386 Seat track inboard inner cover - - -
19 63387 Seat track outboard inner cover - - -
20 56910 Screw (10 required) - - -
21 63389 Seat track outboard outer cover - - -

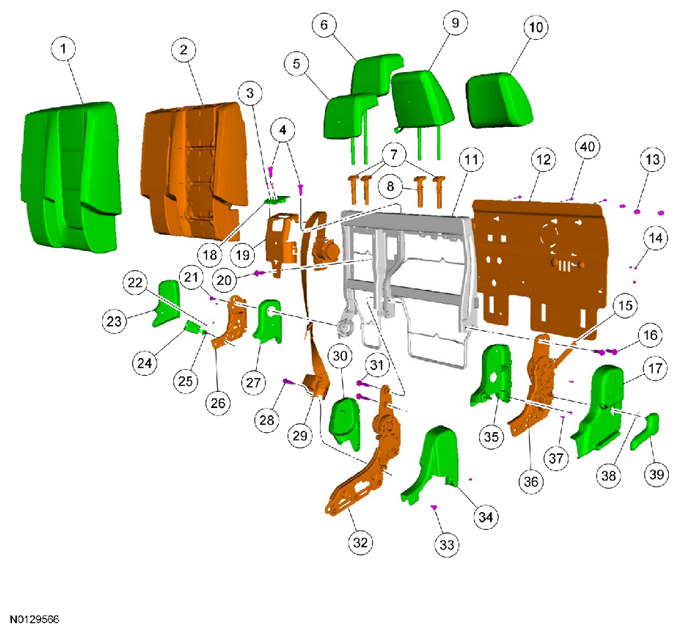

Fig 3: Exploded View Of Seat - 60 Percent Backrest
G07427180Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Service Part Number Description Torque Material Name Notes
1 66601 Backrest cover - - -
2 66801 Backrest foam pad - - -
3 W711129 Safety belt guide cover screw (2 required) 3.5 Nm (31 lb-in) - -
4 W790117 Safety belt retractor guide bolts 48 Nm (35 lb-ft) - -
5 611A08 Head restraint assembly, center - - -
6 501A05 Head restraint cover, center - - -
7 610A16 Head restraint guide, locking - - -
8 610A18 Head restraint guide, non-locking - - -
9 611A08 Head restraint assembly, Left Hand (LH) - - -
10 501A05 Head restraint cover, Left Hand (LH) - - -
11 613A39 Backrest frame - - -
12 60509 Hard back panel - - -
13 Part of 60509 Retainer (3 required) - - -
14 56910 Hard back panel-to-backrest frame screw (3 required) - - -
15 600A96 Recliner release strap - - -
16 W790117 Outboard recliner-to-backrest frame bolt (2 required) REFER to SEAT BACKREST - 60 PERCENT , REFER to SEAT RECLINER - 60 PERCENT, INBOARD  or REFER to SEAT RECLINER - 60 PERCENT, OUTBOARD  - -
17 67460 Outboard recliner outboard cover - - -
18 611A70 Safety belt guide cover - - -
19 613D10 Safety belt guide - - -
20 W790117 Safety belt retractor-to-safety belt guide bolt 40 Nm (30 lb-ft) - -
21 W712962 Backrest pivot bolt REFER to SEAT BACKREST - 60 PERCENT  - -
22 W506943 Screw (3 required) - - -
23 61349 Outboard pivot hinge cover - - -
24 60044 Safety belt buckle - - -
25 Part of 60044 Safety belt buckle bolt 40 Nm (30 lb-ft) - -
26 613B90 Pivot hinge - - -
27 61349 Inboard pivot hinge cover - - -
28 N807750 Safety belt anchor-to-inboard recliner bolt 40 Nm (30 lb-ft) - -
29 611B64 Safety belt retractor and safety belt buckle assembly - - -
30 61348 Inboard recliner cover - - -
31 W713744 Inboard recliner-to-backrest frame bolt (2 required) REFER to SEAT BACKREST - 60 PERCENT  or REFER to SEAT RECLINER - 60 PERCENT, INBOARD  - -
32 61383 Inboard recliner - - -
33 W705589 Pin-type retainer - - -
34 61348 Inboard recliner cover - - -
35 67460 Outboard recliner inner cover - - -
36 61383 Outboard recliner - - -
37 W506943 Recliner cover screw (3 required) - - -
38 W790123 Clip - - -
39 617D35 Recline handle - - -
40 W710250 Pin-type retainer (3 required) - - -

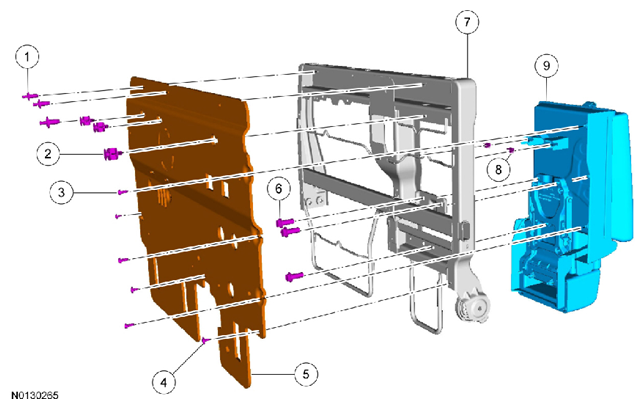

Fig 4: Exploded View Of Seat - 60 Percent Arm Rest
G07427181Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Service Part Number Description Torque Material Name Notes
1 W710250 Pin-type retainer (3 required) - - -
2 Part of 60509 Retainer (3 required) - - -
3 W506841 Hard back panel-to-armrest screw (3 required) - - -
4 56910 Hard back panel-to-backrest frame screw (3 required) - - -
5 60509 Hard back panel - - -
6 W710709 Armrest-to-backrest screw (3 required) 15 Nm (133 lb-in) - -
7 613A39 Backrest frame - - -
8 W713010 Clip (2 required) - - -
9 67112 Armrest assembly - - -
NOTE: For information on the deployable safety belts, REFER to SAFETY BELT BUCKLE AND INFLATOR - 2ND ROW, 60 PERCENT SEAT .

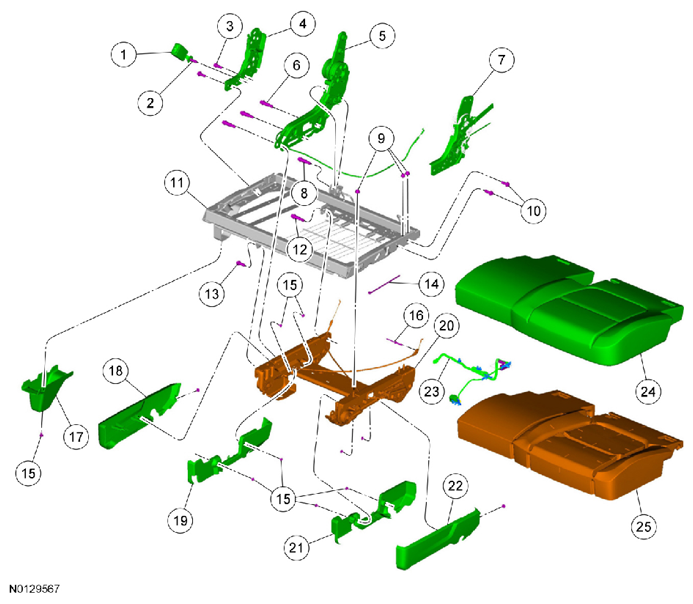

Fig 5: Exploded View Of Seat - 60 Percent Cushion
G07427182Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Service Part Number Description Torque Material Name Notes
1 60044 Safety belt buckle - - -
2 Part of 60044 Safety belt buckle bolt 40 Nm (30 lb-ft) - -
3 W790117 Hinge assembly-to-cushion frame bolt (2 required) 48 Nm (35 lb-ft) - -
4 613B90 Hinge assembly - - -
5 61383 Inboard recliner - - -
6 W790116 Inboard recliner-to-riser bolt (3 required) REFER to SEAT RECLINER - 60 PERCENT, INBOARD  - -
7 61383 Outboard recliner - - -
8 W790116 Inboard recliner-to-cushion frame yoke bolt REFER to SEAT RECLINER - 60 PERCENT, INBOARD  - -
9 W520112 Cushion frame-to-riser nut (3 required) 23 Nm (17 lb-ft) - -
10 W790117 Outboard recliner-to-cushion frame bolts 48 Nm (35 lb-ft) - -
11 63161 Cushion frame - - -
12 W790116 Cushion frame yoke-to-riser bolt 48 Nm (35 lb-ft) - -
13 W790117 Cushion frame-to-riser bolt 48 Nm (35 lb-ft) - -
14 - Tie strap - - -
15 56910 Screws (11 required) - - -
16 W715435 Rivet - - -
17 63388 Stationary foot cover - - -
18 63388 Riser Right Hand (RH) outer cover - - -
19 63386 Riser Right Hand (RH) inner cover - - -
20 606A51 Riser - - -
21 63387 Riser Left Hand (LH) inner cover - - -
22 63389 Riser Left Hand (LH) outer cover - - -
23 14B686 Wire harness assembly (with deployable safety belt system) - - -
24 63805 Cushion cover - - -
25 63841 Cushion foam pad - - -
